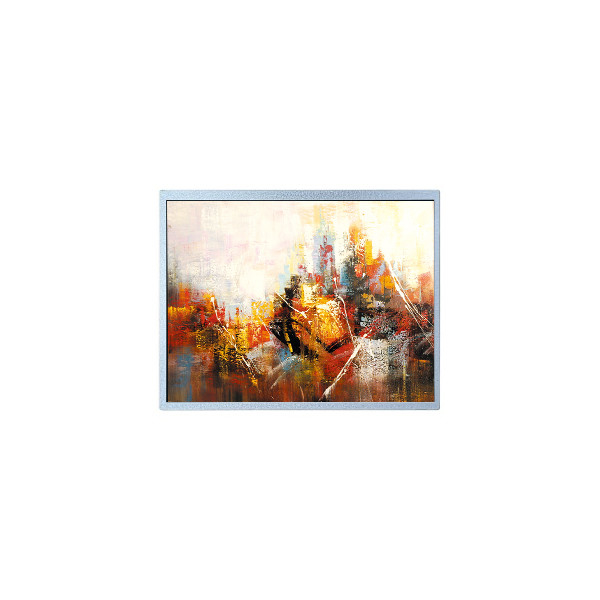

1024*768 10.4 inch AM-1024768M2TMQW-T00H 30 pins TFT LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1024768M2TMQW-T00H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-1024768M2TMQW-T00H | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 123PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
| Used For: | Industrial | Frequency: | 60Hz |
Product Description
1024*768 10.4 inch AM-1024768M2TMQW-T00H 30 pins TFT LCD Screen
AM-1024768M2TMQW-T00H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-1024768M2TMQW-T00H |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | - |
| Outline(mm) | 236 × 175× 7.7 (H×V×D) |
| Treatment | - |
| Luminance | 425 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing Angle | 75/75/60/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 47%NTSC |
| Backlight | 3S13PWLED, 20K hours, No Driver |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, USB |
| Signal Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 1024*768 10.4 inch AM-1024768M2TMQW-T00H 30 pins TFT LCD Screen | |
AM-1024768M2TMQW-T00H LCD Panel Shipping and Package :
AM-1024768M2TMQW-T00H LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd AM-1024768M2TMQW-T00H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order AM-1024768M2TMQW-T00H ship?
A: The order are shipped within 1-2 working days after received the payment.
