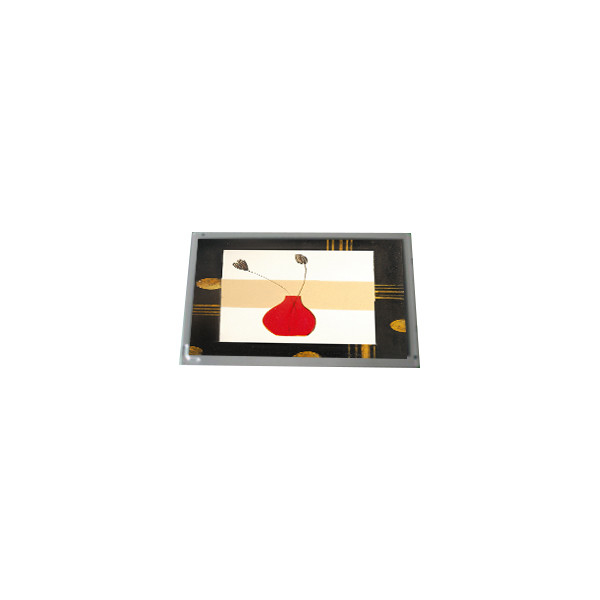

Name: 10.1 inch AM-1024600L3TMQW-06H TFT 30 pins LCD Screen Industrial
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: AM-1024600L3TMQW-06H
Availability: InStock

Brand Name:	AMPIRE
Model Number:	AM-1024600L3TMQW-06H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-1024600L3TMQW-06H

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Used For:

Industrial

Frequency:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

10.1 inch AM-1024600L3TMQW-06H TFT 30 pins LCD Screen Industrial

AM-1024600L3TMQW-06H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-1024600L3TMQW-06H
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	225.92(W)×128.48(H) mm
Outline Dim.	235(W)×145.8(H)×8.85(D) mm
Luminance	550 cd/m² (Typ.)
View Direction	-
Viewing Angle	70/70/70/50 (Typ.)(CR≥10)
Support Color	262K 54% NTSC
Weight	TBD
Frame Rate	60Hz
Treatment	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	5/20 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [6S6P] , 30K hours , Optional
Designed For	Industrial
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit)30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
10.1 inch AM-1024600L3TMQW-06H TFT 30 pins LCD Screen Industrial

AM-1024600L3TMQW-06H LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

AM-1024600L3TMQW-06H LCD Panel Shipping and Package :

10.1 inch AM-1024600L3TMQW-06H TFT 30 pins LCD Screen Industrial 0

AM-1024600L3TMQW-06H LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

AM-1024600L3TMQW-06H LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

AM-1024600L3TMQW-06H LCD Panel FAQ :

Q: Can I pay my order of AM-1024600L3TMQW-06H via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How can I trace my order of AM-1024600L3TMQW-06H ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of AM-1024600L3TMQW-06H ?

A: Of course!If you make a large order, we will give you a discount.
