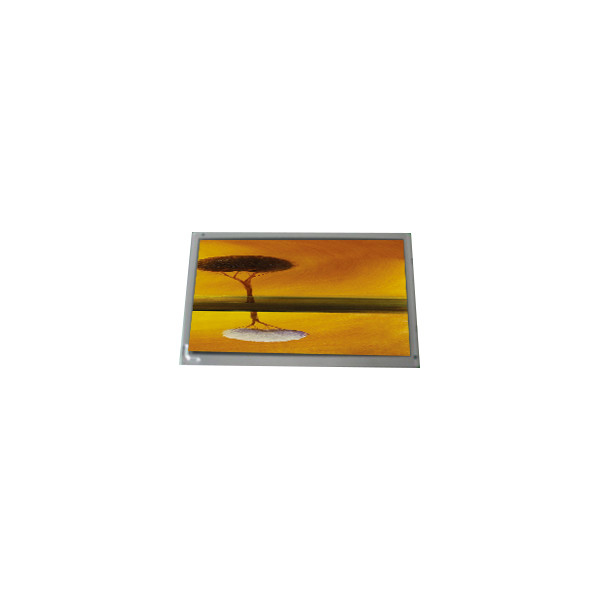

AM-1024600L2TMQW-T03H 10.1 inch PCAP LCD Industrial Screen

Brand Name:	AMPIRE
Model Number:	AM-1024600L2TMQW-T03H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-1024600L2TMQW-T03H

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Used For:

Industrial

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

AM-1024600L2TMQW-T03H 10.1 inch PCAP LCD Industrial Screen

AM-1024600L2TMQW-T03H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-1024600L2TMQW-T03H
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	225.92(W)×128.48(H) mm
Outline Dim.	235(H)×145.8(V)×9.94(D) mm
Treatment	Antiglare
Luminance	800 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	-
Response Time	5/20 (Typ.)(Tr/Td)
Viewing Angle	70/70/70/50 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 54%NTSC
Light Source	WLED [6S6P], 50K hours, With LED Driver
Weight	TBD
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, USB
Interface Type	LVDS (1 ch, 6-bit), 30 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C
AM-1024600L2TMQW-T03H 10.1 inch PCAP LCD Industrial Screen

AM-1024600L2TMQW-T03H LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

AM-1024600L2TMQW-T03H LCD Panel Shipping and Package :

AM-1024600L2TMQW-T03H 10.1 inch PCAP LCD Industrial Screen 0

AM-1024600L2TMQW-T03H LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

AM-1024600L2TMQW-T03H LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

AM-1024600L2TMQW-T03H LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of AM-1024600L2TMQW-T03H ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel AM-1024600L2TMQW-T03H ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
