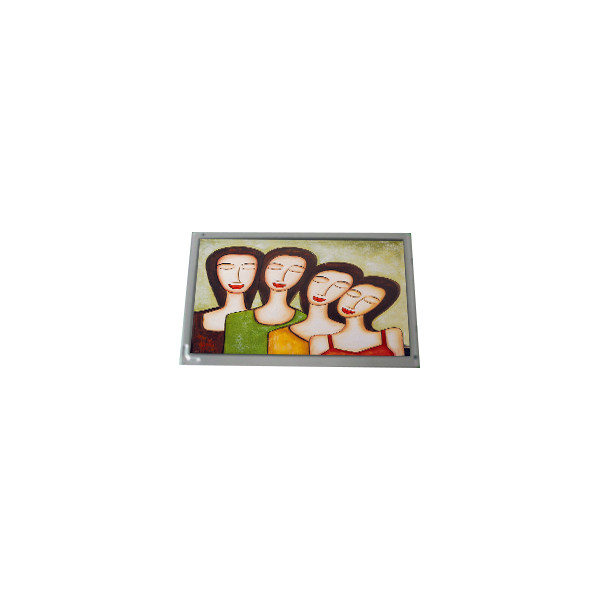

10.1 inch AM-1024600L2HMQW-00H 1024*600 LCD Screen for AMPIRE
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1024600L2HMQW-00H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-1024600L2HMQW-00H | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 222.72(W)×125.28(H) Mm |
| Used For: | Industrial | Frequency: | 60Hz |
Product Description
10.1 inch AM-1024600L2HMQW-00H 1024*600 LCD Screen for AMPIRE
AM-1024600L2HMQW-00H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-1024600L2HMQW-00H |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 225.92(W)×128.48(H) mm |
| Outline (mm) | 235×145.8×8.1 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 1100 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 47%NTSC |
| Backlight | 6S6PWLED, 50K hours, No Driver |
| Mass | TBD |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), Connector30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 10.1 inch AM-1024600L2HMQW-00H 1024*600 LCD Screen for AMPIRE | |
AM-1024600L2HMQW-00H LCD Panel Shipping and Package :
AM-1024600L2HMQW-00H LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of AM-1024600L2HMQW-00H ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of AM-1024600L2HMQW-00H via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of AM-1024600L2HMQW-00H to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods AM-1024600L2HMQW-00H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
