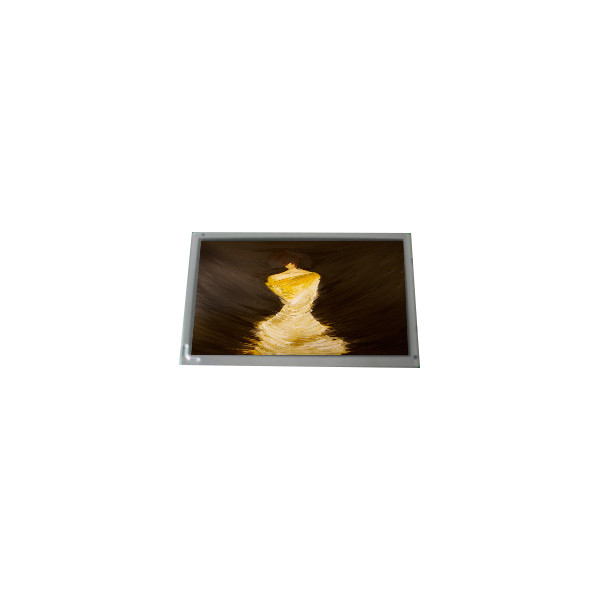

Name: Original 7.0 inch AM-1024600K8TMQW-T09H 1024*600 TFT LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: AM-1024600K8TMQW-T09H
Availability: InStock

Brand Name:	AMPIRE
Model Number:	AM-1024600K8TMQW-T09H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-1024600K8TMQW-T09H

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Used For:

Industrial

Frequency:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 7.0 inch AM-1024600K8TMQW-T09H 1024*600 TFT LCD Screen

AM-1024600K8TMQW-T09H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-1024600K8TMQW-T09H
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	-
Outline (mm)	165.5×104.4×10.77 (H×V×D)
Treatment	Glare (Haze 0%), Hard coating
Luminance	425 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Response	20/20 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M
Backlight	5S3PWLED, 30K hours, With LED Driver
Mass	TBD
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	PCAP, I²C
Signal Type	LVDS (1 ch, 8-bit), Connector20 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
Original 7.0 inch AM-1024600K8TMQW-T09H 1024*600 TFT LCD Screen

AM-1024600K8TMQW-T09H LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

AM-1024600K8TMQW-T09H LCD Panel Shipping and Package :

Original 7.0 inch AM-1024600K8TMQW-T09H 1024*600 TFT LCD Screen 0

AM-1024600K8TMQW-T09H LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

AM-1024600K8TMQW-T09H LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

AM-1024600K8TMQW-T09H LCD Panel FAQ :

Q: Can I pay my order of AM-1024600K8TMQW-T09H via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of AM-1024600K8TMQW-T09H a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of AM-1024600K8TMQW-T09H ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of AM-1024600K8TMQW-T09H ?

A: Of course!sample order is welcome !
