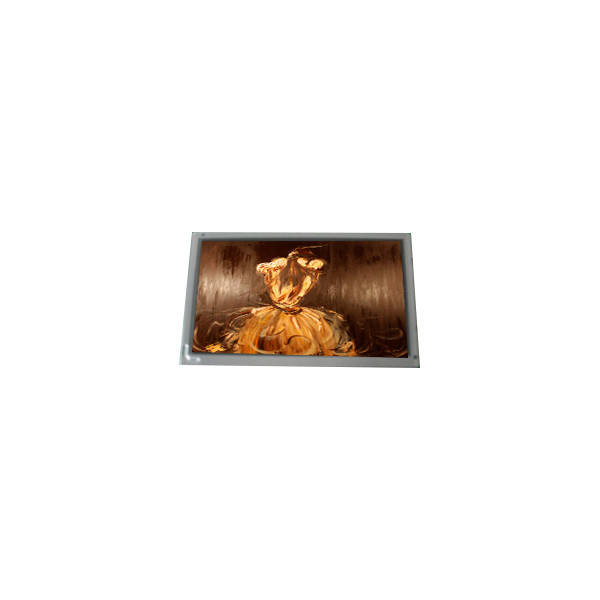

Hot Sell 1024*600 AM-1024600K7TMQW-T06H TFT LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1024600K7TMQW-T06H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-1024600K7TMQW-T06H | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Used For: | Industrial | Frequency: | 60Hz |
Product Description
Hot Sell 1024*600 AM-1024600K7TMQW-T06H TFT LCD Panel Screen
AM-1024600K7TMQW-T06H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-1024600K7TMQW-T06H |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | - |
| Outline(mm) | 165.5 × 104.44× 10.81 (H×V×D) |
| Treatment | - |
| Luminance | 425 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Response | 20/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 5S3PWLED, 30K hours, With LED Driver |
| Mass | TBD |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, I²C |
| Signal Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Hot Sell 1024*600 AM-1024600K7TMQW-T06H TFT LCD Panel Screen | |
AM-1024600K7TMQW-T06H LCD Panel Shipping and Package :
AM-1024600K7TMQW-T06H LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
