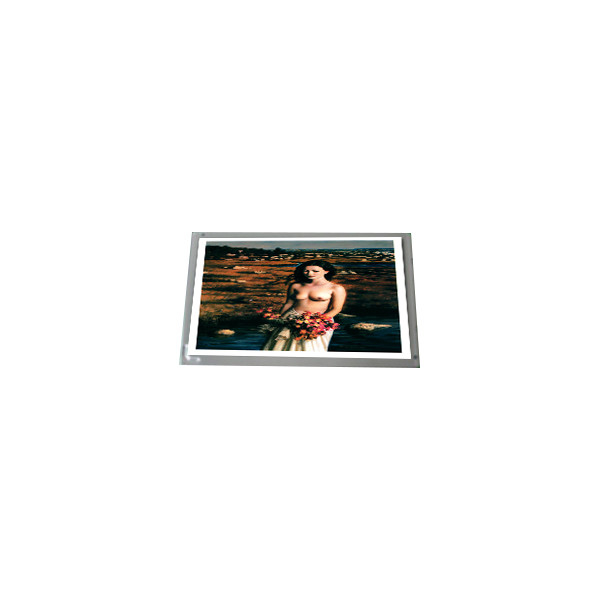

NEW 7.0 inch AM-1024600K7TMQW-T00H 1024*600 TFT LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1024600K7TMQW-T00H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-1024600K7TMQW-T00H | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Used For: | Industrial | Frequency: | 60Hz |
Product Description
NEW 7.0 inch AM-1024600K7TMQW-T00H 1024*600 TFT LCD Screen Display
AM-1024600K7TMQW-T00H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-1024600K7TMQW-T00H |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | - |
| Outline Dim. | 165.5(H)×104.44(V)×9.26(D) mm |
| Treatment | - |
| Luminance | 425 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 20/20 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED [5S3P], 30K hours, With LED Driver |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, USB |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| NEW 7.0 inch AM-1024600K7TMQW-T00H 1024*600 TFT LCD Screen Display | |
AM-1024600K7TMQW-T00H LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
AM-1024600K7TMQW-T00H LCD Panel Shipping and Package :
AM-1024600K7TMQW-T00H LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
AM-1024600K7TMQW-T00H LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
AM-1024600K7TMQW-T00H LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of AM-1024600K7TMQW-T00H ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of AM-1024600K7TMQW-T00H ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of AM-1024600K7TMQW-T00H ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of AM-1024600K7TMQW-T00H ?
A: Of course!sample order is welcome !
