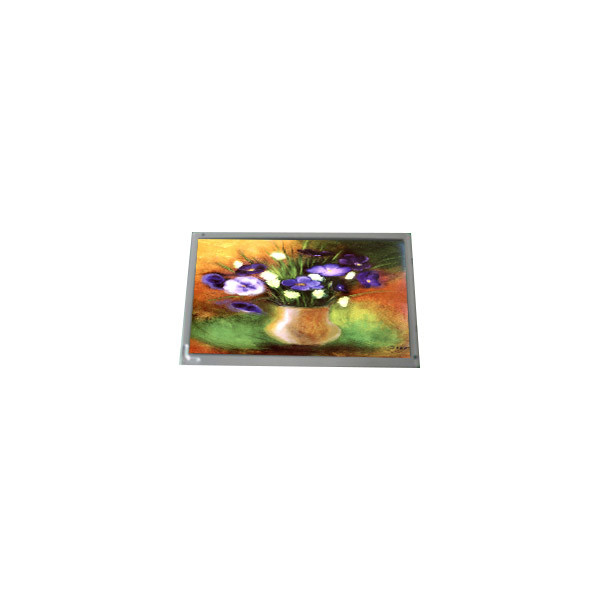

Name: 1024*600 AM-1024600DTZQW-TA0H 7.0 inch PCAP LCD Panel Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: AM-1024600DTZQW-TA0H
Availability: InStock

Brand Name:	AMPIRE
Model Number:	AM-1024600DTZQW-TA0H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-1024600DTZQW-TA0H

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 170PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

154.214(W)×85.92(H) Mm

Used For:

Industrial

Frequency:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

1024*600 AM-1024600DTZQW-TA0H 7.0 inch PCAP LCD Panel Screen

AM-1024600DTZQW-TA0H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-1024600DTZQW-TA0H
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.214(W)×85.92(H) mm
Bezel Opening	-
Outline Dim.	184(W)×128(H)×12.6(D) mm
Treatment	-
Luminance	425 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	13/15 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 58%NTSC
Light Source	WLED, 30K hours, With LED Driver
Weight	-
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, USB
Interface Type	LVDS (1 ch, 8-bit), 20 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
Screen

AM-1024600DTZQW-TA0H LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

AM-1024600DTZQW-TA0H LCD Panel Shipping and Package :

1024*600 AM-1024600DTZQW-TA0H 7.0 inch PCAP LCD Panel Screen 0

AM-1024600DTZQW-TA0H LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

AM-1024600DTZQW-TA0H LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

AM-1024600DTZQW-TA0H LCD Panel FAQ :

Q: When would you ship,IF I order AM-1024600DTZQW-TA0H now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
