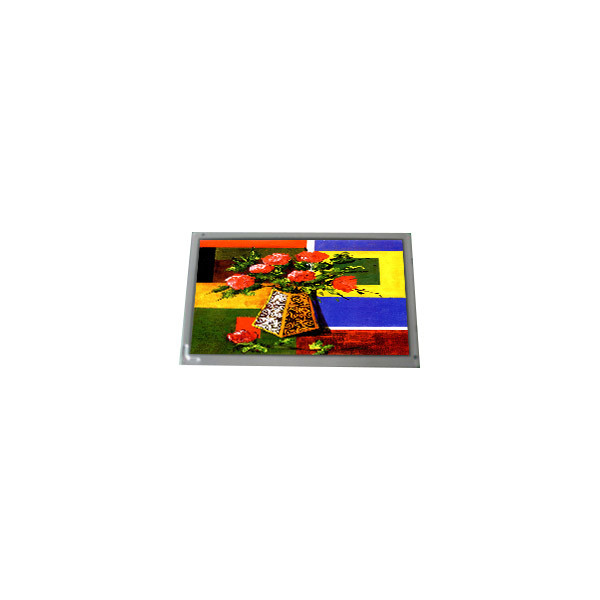

1024*600 10.1 inch AM-1024600B3TMQW-00H 6S8P WLED LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1024600B3TMQW-00H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-1024600B3TMQW-00H | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 118PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 220.416(W)×129.15(H) Mm |
| Used For: | Industrial | Frequency: | 60Hz |
Product Description
1024*600 10.1 inch AM-1024600B3TMQW-00H 6S8P WLED LCD Screen
AM-1024600B3TMQW-00H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-1024600B3TMQW-00H |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 220.416(W)×129.15(H) mm |
| Bezel Opening | 223.42(W)×132.15(H) mm |
| Outline(mm) | 235 × 145.8× 6.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 550 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 6S8PWLED, 33K hours, Optional |
| Mass | 330g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 1024*600 10.1 inch AM-1024600B3TMQW-00H 6S8P WLED LCD Screen | |
AM-1024600B3TMQW-00H LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
AM-1024600B3TMQW-00H LCD Panel Shipping and Package :
AM-1024600B3TMQW-00H LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
AM-1024600B3TMQW-00H LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
AM-1024600B3TMQW-00H LCD Panel FAQ :
Q: Can You declare my order of AM-1024600B3TMQW-00H to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of AM-1024600B3TMQW-00H via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of AM-1024600B3TMQW-00H ?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
