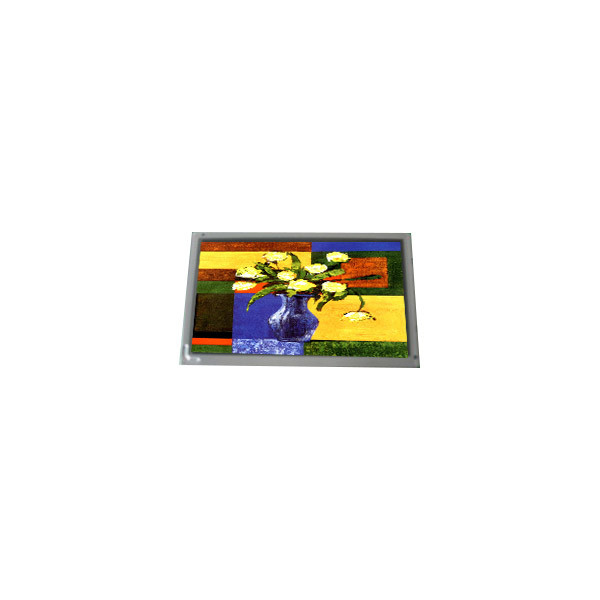

NEW 7.0 inch AM-1024600ATMQW-A6H 1024*600 LCD Screen monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1024600ATMQW-A6H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-1024600ATMQW-A6H | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 170PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 153.6(W)×86.64(H) Mm |
| Used For: | Industrial、Outdoor High Brightness | Frequency: | 60Hz |
Product Description
NEW 7.0 inch AM-1024600ATMQW-A6H 1024*600 LCD Screen monitor
AM-1024600ATMQW-A6H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-1024600ATMQW-A6H |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 170PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | 156.2(W)×90.3(H) mm |
| Outline Dim. | 164.9(H)×100(V)×10.15(D) mm |
| Treatment | - |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED [7S4P], 50K hours, With LED Driver |
| Weight | - |
| Designed For | Industrial,Outdoor High Brightness |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C |
| NEW 7.0 inch AM-1024600ATMQW-A6H 1024*600 LCD Screen monitor | |
AM-1024600ATMQW-A6H LCD Panel Shipping and Package :
AM-1024600ATMQW-A6H LCD Panel FAQ :
Q: When will my order AM-1024600ATMQW-A6H ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd AM-1024600ATMQW-A6H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
