Industrial LCD Panel Display

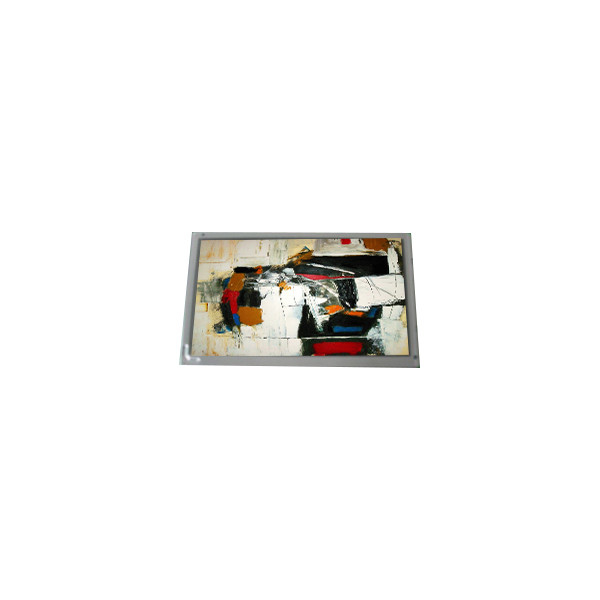

AM-800600MJTNQW-T02H 800*600 8.4 inch PCAP TFT-LCD screen Panel

All Category

Floor Standing Digital Signage

AM-800600MJTNQW-T02H 800*600 8.4 inch PCAP TFT-LCD screen Panel

Brand Name:	AMPIRE
Model Number:	AM-800600MJTNQW-T02H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-800600MJTNQW-T02H

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 119PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

170.4(W)×127.8(H) Mm

Touchscreen:

PCAP, USB

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

AM-800600MJTNQW-T02H 800*600 8.4 inch PCAP TFT-LCD screen Panel

AM-800600MJTNQW-T02H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-800600MJTNQW-T02H
Diagonal Size	8.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	170.4(W)×127.8(H) mm
Bezel Opening	-
Outline Size	203(W)×145.5(H)×13.35(D) mm
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	75/75/60/70 (Typ.)(CR≥10)
Response	8 (Typ.)(Tr+Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	12S4PWLED, 50K hours, With LED Driver
Mass	TBD
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	PCAP, USB
Signal Type	LVDS (1 ch, 6-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
AM-800600MJTNQW-T02H 800*600 8.4 inch PCAP TFT-LCD screen Panel

AM-800600MJTNQW-T02H LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

AM-800600MJTNQW-T02H LCD Panel Shipping and Package :

AM-800600MJTNQW-T02H 800*600 8.4 inch PCAP TFT-LCD screen Panel 0

AM-800600MJTNQW-T02H LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

AM-800600MJTNQW-T02H LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

AM-800600MJTNQW-T02H LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of AM-800600MJTNQW-T02H ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of AM-800600MJTNQW-T02H ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of AM-800600MJTNQW-T02H ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of AM-800600MJTNQW-T02H ?

A: Of course!sample order is welcome !
