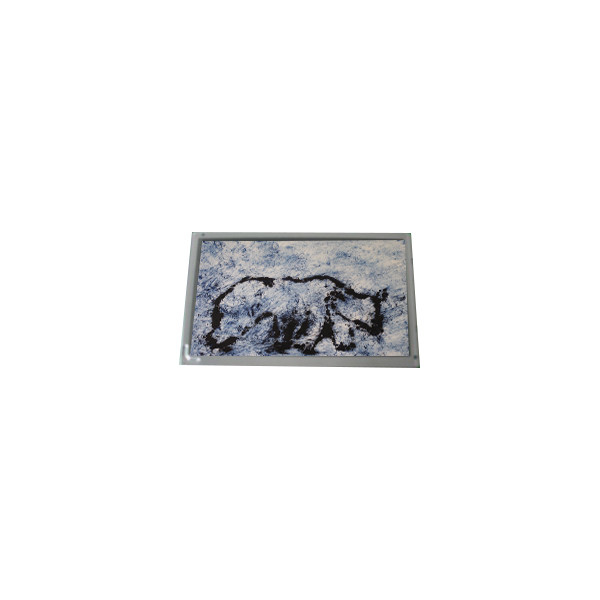

AM-800600M3TNQW-02H 8.4 inch LVDS 60Hz TFT-LCD screen Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-800600M3TNQW-02H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-800600M3TNQW-02H | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 119PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 170.4(W)×127.8(H) Mm |
| Touchscreen: | Without | Designed For: | Industrial |
Product Description
AM-800600M3TNQW-02H 8.4 inch LVDS 60Hz TFT-LCD screen Parts
AM-800600M3TNQW-02H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | |
| Diagonal Size | AM-800600M3TNQW-02H |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 174.15(W)×131.2(H) mm |
| Outline(mm) | 203(W)×145.5(H)×10.4(D) |
| Luminance | 350 (Typ.)(cd/m²) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Good View at | - |
| Color Depth | 262K 70% NTSC |
| Mass | 280g |
| Refresh Rate | 60Hz |
| Treatment | - |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 8 (Typ.)(Tr+Td) ms |
| Backlight | 12S4P WLED , 50K hours , With LED Driver |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AM-800600M3TNQW-02H 8.4 inch LVDS 60Hz TFT-LCD screen Parts | |
