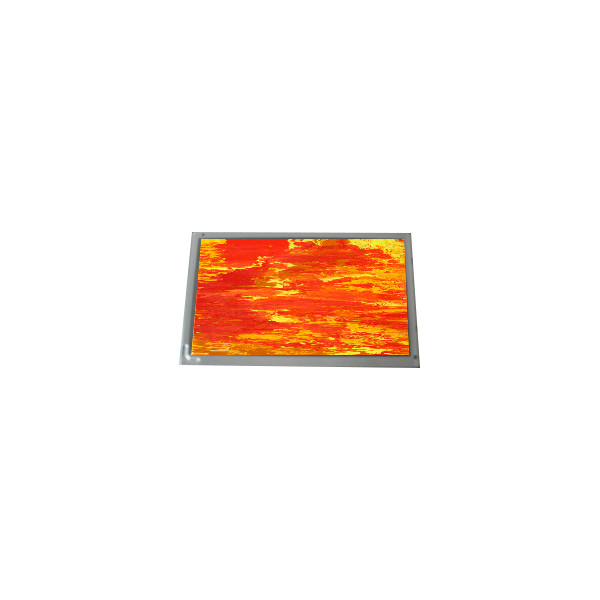

NEW 800*600 AM-800600LTNQW-D0H 10.4 inch TFT-LCD screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-800600LTNQW-D0H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-800600LTNQW-D0H | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 96PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
| Touchscreen: | Without | Designed For: | Industrial |
Product Description
NEW 800*600 AM-800600LTNQW-D0H 10.4 inch TFT-LCD screen Monitor
AM-800600LTNQW-D0H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-800600LTNQW-D0H |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.0(W)×162.0(H) mm |
| Outline(mm) | 236 × 176.9× 11.76 (H×V×D) |
| Treatment | - |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50%NTSC |
| Backlight | 6S6PWLED, 30K hours, With LED Driver |
| Mass | 312g |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| NEW 800*600 AM-800600LTNQW-D0H 10.4 inch TFT-LCD screen Monitor | |
