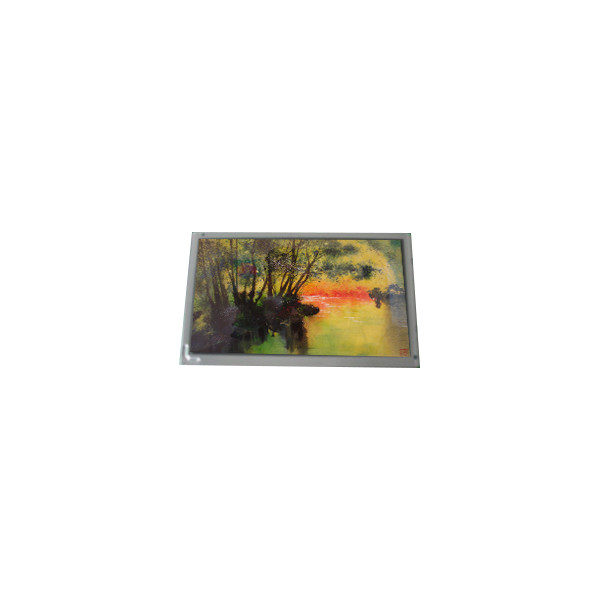

AM-800600K3TMQW-01H-F 10.4 inch TFT-LCD screen for Outdoor High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-800600K3TMQW-01H-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-800600K3TMQW-01H-F | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 96PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
| Touchscreen: | Without | Designed For: | Outdoor High Brightness、Automotive Display |
Product Description
AM-800600K3TMQW-01H-F 10.4 inch TFT-LCD screen for Outdoor High Brightness
AM-800600K3TMQW-01H-F LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-800600K3TMQW-01H-F |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.8(W)×162.7(H) mm |
| Outline Size | 243(W)×185.6(H)×8.7(D) mm |
| Surface | - |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 50%NTSC |
| Lamp Type | WLED, 50K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Application | Outdoor High Brightness,Automotive Display |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| AM-800600K3TMQW-01H-F 10.4 inch TFT-LCD screen for Outdoor High Brightness | |
