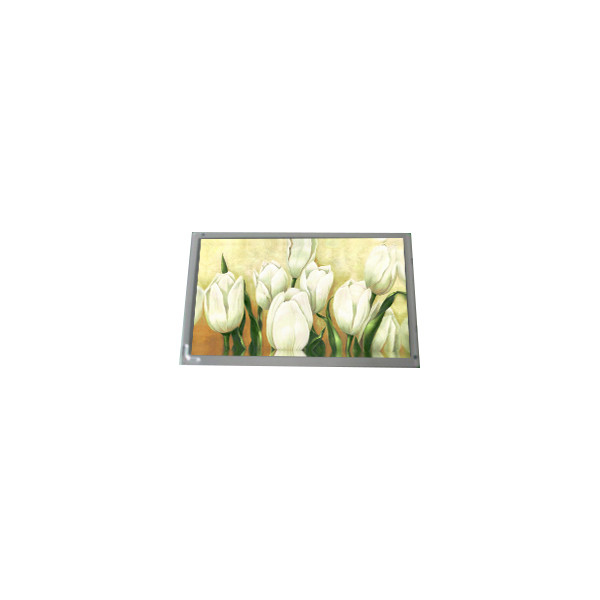

AM-800600GTMQW-02H 800*600 8.0 inch 20 pins LVDS TFT-LCD screen Panel

Brand Name:	AMPIRE
Model Number:	AM-800600GTMQW-02H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-800600GTMQW-02H

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 125PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

162(W)×121.5(H) Mm

Touchscreen:

Without

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

AM-800600GTMQW-02H 800*600 8.0 inch 20 pins LVDS TFT-LCD screen Panel

AM-800600GTMQW-02H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-800600GTMQW-02H
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 125PPI
Pixel Format	RGB Vertical Stripe
Active Area	162(W)×121.5(H) mm
Bezel Opening	163.8(W)×123.3(H) mm
Outline Size	183(W)×141(H)×9(D) mm
Brightness	300 cd/m² (Typ.)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 62%NTSC
Frequency	60Hz
Weight	-
Surface	Antiglare
Contrast Ratio	400:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	WLED , 20K hours , Without Driver
Touch Screen	Without
Application	Industrial
Signal Interface	LVDS (1 ch, 6-bit), 20 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
AM-800600GTMQW-02H 800*600 8.0 inch 20 pins LVDS TFT-LCD screen Panel

AM-800600GTMQW-02H LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

AM-800600GTMQW-02H LCD Panel Shipping and Package :

AM-800600GTMQW-02H 800*600 8.0 inch 20 pins LVDS TFT-LCD screen Panel 0

AM-800600GTMQW-02H LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

AM-800600GTMQW-02H LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

AM-800600GTMQW-02H LCD Panel FAQ :

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd AM-800600GTMQW-02H ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order AM-800600GTMQW-02H ship?

A: The order are shipped within 1-2 working days after received the payment.
