Industrial LCD Panel Display

7.0 inch AM-800480SBTMQW-TB0 LCD Panel PCAP Screen FOR Industrial

All Category

Floor Standing Digital Signage

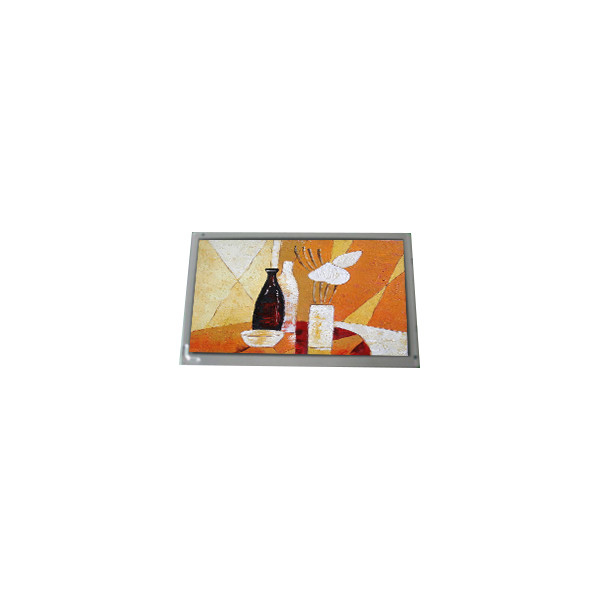

7.0 inch AM-800480SBTMQW-TB0 LCD Panel PCAP Screen FOR Industrial

Brand Name:	AMPIRE
Model Number:	AM-800480SBTMQW-TB0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-800480SBTMQW-TB0

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Designed For:

Industrial

Touchscreen:

PCAP, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

7.0 inch AM-800480SBTMQW-TB0 LCD Panel PCAP Screen FOR Industrial

AM-800480SBTMQW-TB0 LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-800480SBTMQW-TB0
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	-
Outline Dim.	165(H)×104(V)×9.61(D) mm
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	-
Response Time	5/11 (Typ.)(Tr/Td)
Viewing Angle	70/70/70/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 48%NTSC
Light Source	WLED [3S8P], 20K hours, With LED Driver
Weight	135g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, I²C
Interface Type	6/8/9/16/18-bit 6800/8080, 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
7.0 inch AM-800480SBTMQW-TB0 LCD Panel PCAP Screen FOR Industrial

AM-800480SBTMQW-TB0 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

AM-800480SBTMQW-TB0 LCD Panel Shipping and Package :

AM-800480SBTMQW-TB0 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your AM-800480SBTMQW-TB0 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

AM-800480SBTMQW-TB0 LCD Panel FAQ :

Q: How long will I receive my goods AM-800480SBTMQW-TB0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of AM-800480SBTMQW-TB0 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of AM-800480SBTMQW-TB0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of AM-800480SBTMQW-TB0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
