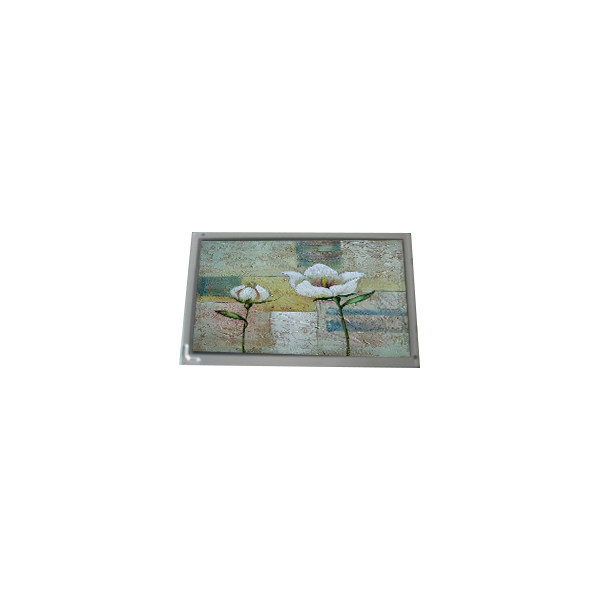

7.0 inch AM-800480RBTMQW-TB1H 60Hz LCD Screen LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-800480RBTMQW-TB1H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-800480RBTMQW-TB1H | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Designed For: | Industrial | Touchscreen: | PCAP, USB |
Product Description
7.0 inch AM-800480RBTMQW-TB1H 60Hz LCD Screen LCD Panel Display
AM-800480RBTMQW-TB1H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-800480RBTMQW-TB1H |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.3(W)×94.30(H) mm |
| Outline Size | 165(W)×104.44(H)×7.61(D) mm |
| Surface | - |
| Brightness | 240 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 3S10PWLED, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP, USB |
| Panel Weight | - |
| Application | Industrial |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |
| 7.0 inch AM-800480RBTMQW-TB1H 60Hz LCD Screen LCD Panel Display | |
