R238HCA-L3B 23.8 inch Medical LCD Screen Panel

All Category

Floor Standing Digital Signage

R238HCA-L3B 23.8 inch Medical LCD Screen Panel

Brand Name:	Innolux
Model Number:	R238HCA-L3B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

R238HCA-L3B

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Outline Dim.:

535(H)×313(V) ×12.3(D) Mm

Contrast Ratio:

1000:1 (Typ.) (TM)

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Operating Mode:

AAS, Normally Black, Transmissive

Application:

Medical Imaging

Interface Type:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

R238HCA-L3B 23.8 inch Medical LCD Screen Panel

R238HCA-L3B LCD Panel Product details :

Innolux LCD Screen R238HCA-L3B
Brand	Innolux
Model P/N	R238HCA-L3B
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Outline Size	535(W)×313(H) ×12.3(D) mm
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Response Time	8/7 (Typ.)(Tr/Td)
Display Colors	16.7M 74% NTSC
Weight	2.04/2.37/2.4Kgs (Min./Typ./Max.)
Lamp Type	WLED , 50K hours , With LED Driver
Designed For	Medical Imaging
Frame Rate	60Hz
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
R238HCA-L3B 23.8 inch Medical LCD Screen Panel

R238HCA-L3B LCD Screen Processing Time :

Standard Processing Time: 1-5 Business Days

Order Verification:

As soon as you place your order, our team begins by verifying the details to ensure everything is accurate. This includes checking the items you've ordered and confirming their availability in our inventory.

Address Verification:

To prevent any shipping delays or errors, we meticulously verify the shipping address you've provided. This step is crucial in ensuring that your order reaches you without any hiccups.

Shipment Arrangement:

After verifying the payment and shipping address, we proceed to arrange your shipment. This involves coordinating with our logistics partners to prepare your order for dispatch. We package your LCD screen securely to prevent any damage during transit.

R238HCA-L3B LCD Screen Item Description :

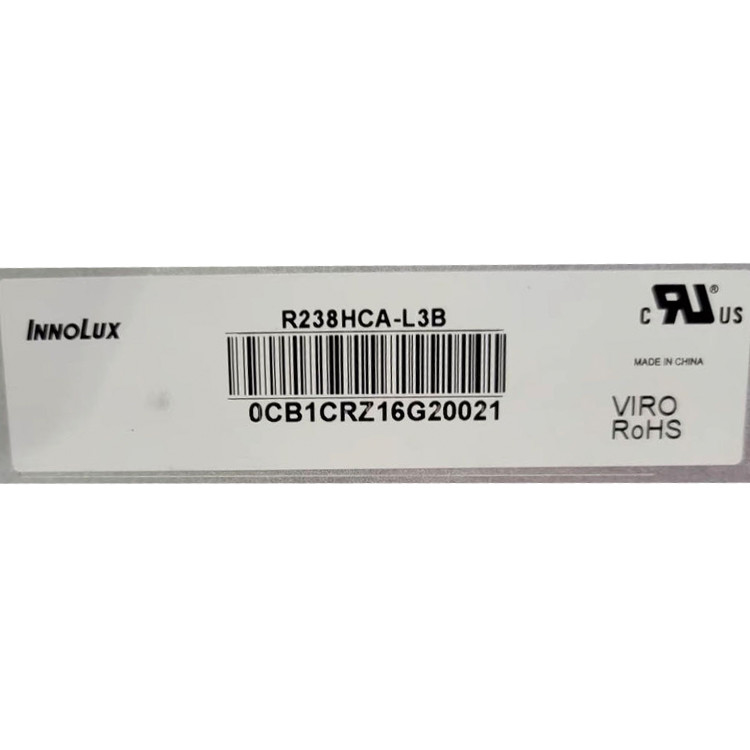

R238HCA-L3B 23.8 inch Medical LCD Screen Panel 0

R238HCA-L3B LCD Screen Note :

Verify the Model Number:

Carefully check the numbers on the link provided to ensure that you are ordering the correct model. If you are uncertain about the model, please send us a clear photo of the entire back side of your old screen. This will help us confirm the exact model you need.

Complexity of LCD Screen Models:

There are numerous and complex models of LCD screens, and some internal screen models are compatible with each other. To avoid any compatibility issues, we strongly recommend consulting our sellers before making your purchase. They can provide guidance and ensure that you choose the right screen for your device.

Professional Installation Required:

This product does not come with installation instructions. It is crucial to have the screen installed by a professional. During the installation process, make sure to disconnect the power adapter and battery cable to avoid any electrical damage.

Package Contents:

The package includes the LCD screen only and does not come with other accessories.

Handling Fragile Goods:

LCD screens are made of glass and are therefore fragile. If you are not satisfied with the product upon receiving it, please contact us first before taking any further action. We are here to help resolve any issues you may have.

Returning Incorrect Products:

If you find that you have purchased the wrong product, do not open the packaging. Instead, keep it sealed and undamaged. Try to restore it to its original packaging form and inform us of the correct screen model you need. This will facilitate a smoother return and replacement process.

R238HCA-L3B LCD Panel FAQ :

Q: When will my order 23.8 inch lcd panel R238HCA-L3B ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 23.8 inch lcd panel R238HCA-L3B before shipping?

A: Don't Worry , The R238HCA-L3B was tested ok before shipping.

Q: What happen if R238HCA-L3B I received can't work ?

A: The R238HCA-L3B will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

R238HCA-L3B LCD Screen Contact Us :

Resolving Issues:

If you encounter any problems with the item, please contact us first to give us the opportunity to explain the situation or resolve the issue. We are here to help and ensure your satisfaction with our product.

Business Hours:

Our customer support team is available from Monday to Saturday to assist you with any queries or concerns.
