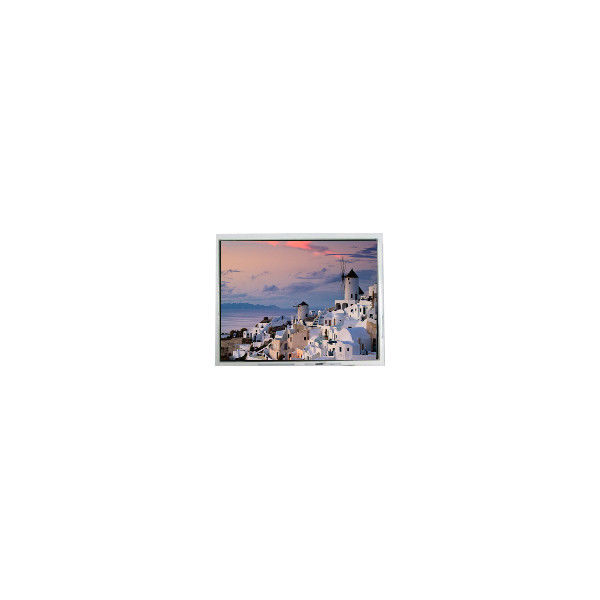

Original 800*480 AM-800480ADTNQW-T30H 7.0 inch PCAP LCD screen

All Category

Floor Standing Digital Signage

Original 800*480 AM-800480ADTNQW-T30H 7.0 inch PCAP LCD screen

Brand Name:	AMPIRE
Model Number:	AM-800480ADTNQW-T30H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-800480ADTNQW-T30H

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Touch Screen:

PCAP, USB

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 800*480 AM-800480ADTNQW-T30H 7.0 inch PCAP LCD screen

AM-800480ADTNQW-T30H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-800480ADTNQW-T30H
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	-
Outline (mm)	164.9×100×7.35 (H×V×D)
Treatment	-
Luminance	210 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 55%NTSC
Backlight	3S6PWLED, 20K hours, No Driver
Mass	-
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	PCAP, USB
Signal Type	Parallel RGB (1 ch, 8-bit) + SPI, Connector50 pins
Voltage Supply	3.3/10.4/16/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
Original 800*480 AM-800480ADTNQW-T30H 7.0 inch PCAP LCD screen

AM-800480ADTNQW-T30H LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

AM-800480ADTNQW-T30H LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

AM-800480ADTNQW-T30H LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

AM-800480ADTNQW-T30H LCD Panel Shipping and Package :

Original 800*480 AM-800480ADTNQW-T30H 7.0 inch PCAP LCD screen 0

AM-800480ADTNQW-T30H LCD Panel FAQ :

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel AM-800480ADTNQW-T30H I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
