Industrial LCD Panel Display

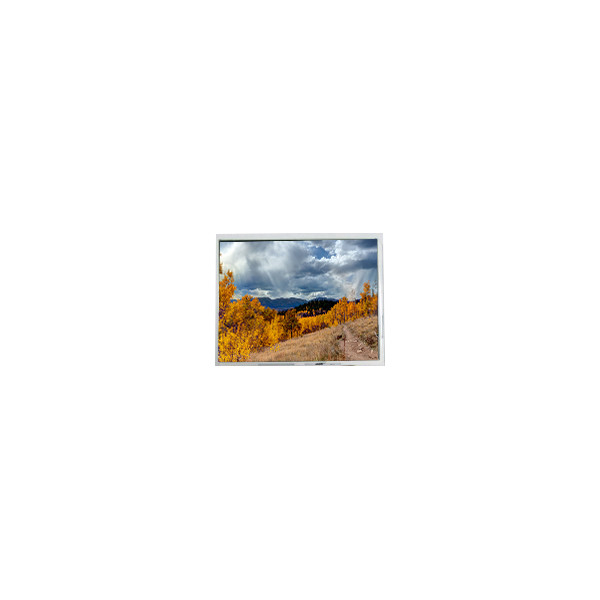

640*480 5.7 inch AM-640480G2TNQW-A0H LVDS 262K LCD screen Display

All Category

Floor Standing Digital Signage

Stretched Bar LCD Display

chance

info@yongs-hk.com

86-18575563918

Contact Now

640*480 5.7 inch AM-640480G2TNQW-A0H LVDS 262K LCD screen Display

Brand Name:	AMPIRE
Model Number:	AM-640480G2TNQW-A0H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-640480G2TNQW-A0H

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Touch Screen:

Without

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

640*480 5.7 inch AM-640480G2TNQW-A0H LVDS 262K LCD screen Display

AM-640480G2TNQW-A0H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-640480G2TNQW-A0H
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.0(W)×89.2(H) mm
Outline Dim.	127(H)×98.43(V)×7.8(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	250:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	50 (Typ.)(Tr+Td)
Viewing Angle	70/70/50/50 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 50%NTSC
Light Source	WLED, 20K hours, With LED Driver
Weight	-
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit), 20 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
640*480 5.7 inch AM-640480G2TNQW-A0H LVDS 262K LCD screen Display

AM-640480G2TNQW-A0H LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

AM-640480G2TNQW-A0H LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

AM-640480G2TNQW-A0H LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

AM-640480G2TNQW-A0H LCD Panel Shipping and Package :

640*480 5.7 inch AM-640480G2TNQW-A0H LVDS 262K LCD screen Display 0

AM-640480G2TNQW-A0H LCD Panel FAQ :

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel AM-640480G2TNQW-A0H I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
