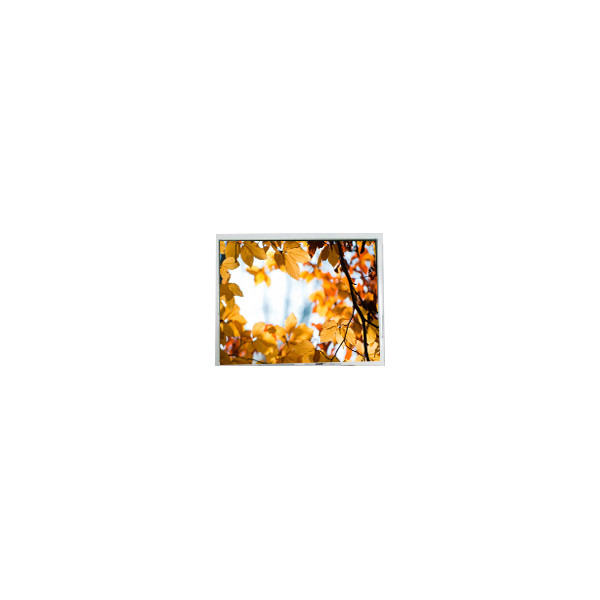

640*480 5.7inch AM-640480G2TNQW-00H 60Hz 262K LCD Screen Panel

Brand Name:	AMPIRE
Model Number:	AM-640480G2TNQW-00H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-640480G2TNQW-00H

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Touch Screen:

Without

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

640*480 5.7inch AM-640480G2TNQW-00H 60Hz 262K LCD Screen Panel

AM-640480G2TNQW-00H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-640480G2TNQW-00H
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.0(W)×89.2(H) mm
Outline(mm)	127(W)×98.43(H)×6.9(D)
Luminance	500 (Typ.)(cd/m²)
Viewing Angle	70/70/50/50 (Typ.)(CR≥10)
Good View at	12 o'clock
Color Depth	262K 50% NTSC
Mass	-
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	250 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	50 (Typ.)(Tr+Td) ms
Backlight	WLED , 30K hours , With LED Driver
Used for	Industrial
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3/5.0V (Typ.)(VCC/VDD)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: 0 ~ 70 °C
