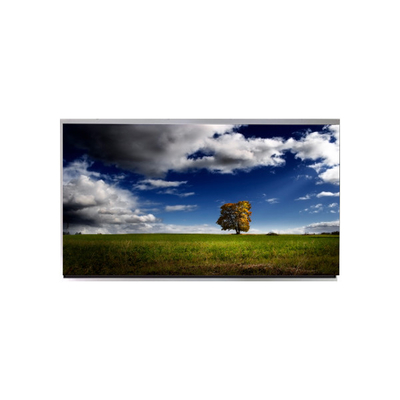

Original OLED Display TA055JHHM01 5.5 inch 720*1280 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TA055JHHM01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TA055JHHM01 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | AM-OLED, OLED, Full Cell | Resolution: | 720(RGB)×1280, WXGA 268PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Application: | Mobile Phone |
| Refresh Rate: | 60Hz | Touchscreen: | On-Cell Touch |
Product Description
Original OLED Display TA055JHHM01 5.5 inch 720*1280 LCD Screen
TA055JHHM01 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TA055JHHM01 |
| Diagonal Size | 5.5" |
| Panel Type | AM-OLED, OLED, Full Cell |
| Resolution | 720(RGB)×1280, WXGA 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline(mm) | 70.64 × 128.26 (H×V×D) |
| Treatment | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 1 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | 16.7M 105%NTSC |
| Backlight | self |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch |
| Driver IC list | SuggestCOGRM67120G90 |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
Hello valued customers,
We want to thank you for choosing our products for your shipping needs. We would like to advise you that when shipping to Japan or South Korea with FedEx or DHL, we are obligated to declare the actual price of the item. This is to ensure a smooth customs clearance process.
In particular, for deliveries to South Korea, it is important for us to have a customs clearance serial number in order to expedite the delivery of your order. The format of such a serial number is usually "P123456789123," so it would be greatly appreciated if you could provide us with this information.
We understand that customs clearance may sometimes be inconvenient, but please rest assured that we will handle all documentation with utmost care to ensure that your order arrives safely and on time. We take pride in providing high-quality delivery services to our customers, and we will do everything in our power to make your shipping experience a positive one.
Thank you for your understanding and cooperation. We look forward to serving you again in the future.
Best regards,
TA055JHHM01 LCD Panel Shipping and Package :
TA055JHHM01 LCD Panel FAQ :
Q: Can I pay my order of TA055JHHM01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of TA055JHHM01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TA055JHHM01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
