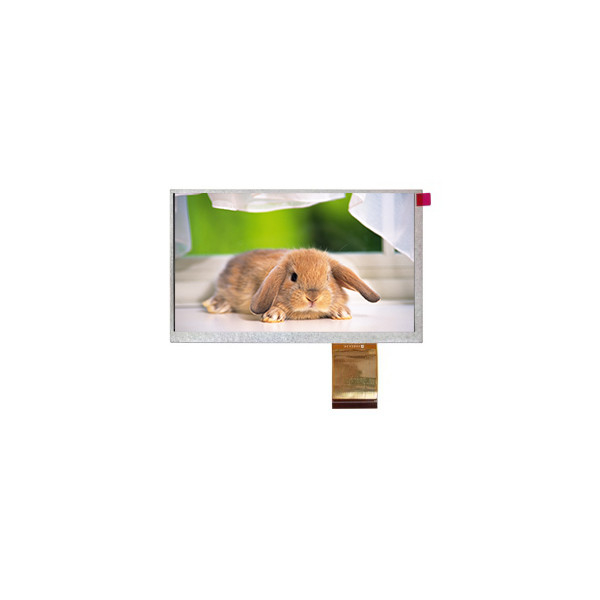

8.0 inch TM080DDHG02-00 1024*600 60Hz LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM080DDHG02-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM080DDHG02-00 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 149PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 176.179(W)×99.36(H) Mm |
| Color Depth: | 262K/16.7M 50% NTSC | Application: | Outdoor High Brightness、Automotive Display |
| Work Mode: | TN, Normally White, Transmissive | Response: | 20 (Typ.)(Tr+Td) Ms |
Product Description
8.0 inch TM080DDHG02-00 1024*600 60Hz LCD Screen
TM080DDHG02-00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM080DDHG02-00 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.179(W)×99.36(H) mm |
| Bezel Opening | 178.78(W)×103.26(H) mm |
| Outline(mm) | 192.8(W)×116.9(H)×6.7(D) |
| Luminance | 750 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Good View at | 12 o'clock |
| Color Depth | 262K/16.7M 50% NTSC |
| Mass | 216g |
| Refresh Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 20 (Typ.)(Tr+Td) ms |
| Backlight | 3S13P WLED , 2K hours , No Driver |
| Used for | Outdoor High Brightness,Automotive Display |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit), 40 pins FPC |
| Voltage Supply | 3.3/10.6/20.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
At our company, we strongly believe in manufacture excellence. We take pride in our work and only produce the best consumer goods possible. We understand that quality plays a crucial role in customer satisfaction, so we take every step necessary to ensure that our products meet or exceed your expectations.
To achieve this, we have implemented robust quality control processes that allow us to catch any defects before they reach the customer. We continually review and improve our manufacturing techniques to ensure that we are using the most innovative and effective methods available. Additionally, we invest in cutting-edge technology to give us a competitive edge in the industry.
To manufacture the TM080DDHG02-00 LCD Screen, we have taken every measure to ensure its quality. From the selection of materials to the assembly process, we have paid attention to every detail to make sure that the end product is of the highest quality. We are confident that our commitment to excellence is evident in every screen we produce.
We strive to maintain our reputation for quality and excellence throughout our production process. We believe that our customers deserve nothing but the best, and that is what we aim to deliver. Through our dedication to manufacture excellence, we are confident in our ability to provide durable and reliable products that exceed your expectations.
TM080DDHG02-00 LCD Panel Shipping and Package :
TM080DDHG02-00 LCD Panel FAQ :
Q: Can you tested the TM080DDHG02-00 before shipping ?
A: Of course , our lcd panel TM080DDHG02-00 was Strictly tested before shipping.
Q: How to order TM080DDHG02-00 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd TM080DDHG02-00 ?
A: 90 days .
Q: What happen if the lcd panel TM080DDHG02-00 I received can't work ?
A: TM080DDHG02-00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
