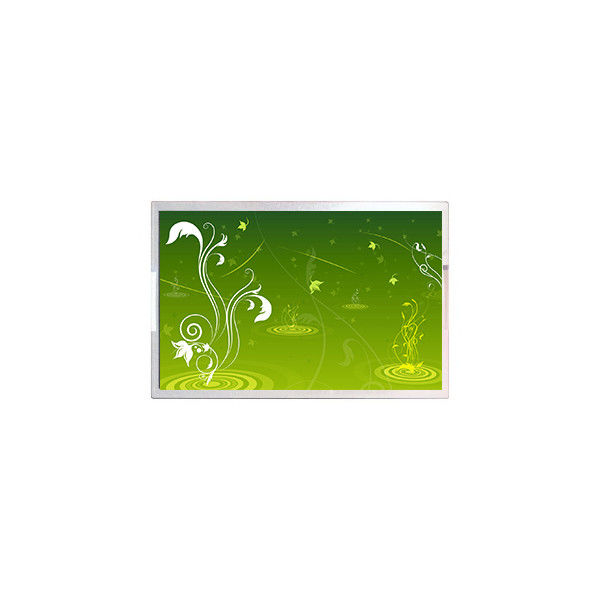

TM123XDKP11 12.3 inch 1920*720 tft LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM123XDKP11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM123XDKP11 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 166PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 292.32(W)×109.62(H) Mm |
| Color Depth: | 16.7M 75%NTSC | Application: | Industrial、Outdoor High Brightness、Automotive Display |
| Backlight: | 10S3PWLED, 10K Hours, No Driver | Refresh Rate: | 60Hz |
Product Description
TM123XDKP11 12.3 inch 1920*720 tft LCD Screen Display Panel
TM123XDKP11 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM123XDKP11 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.32(W)×109.62(H) mm |
| Bezel Opening | - |
| Outline(mm) | 309.8 × 128.1× 16.8 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 30 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 75%NTSC |
| Backlight | 10S3PWLED, 10K hours, No Driver |
| Mass | 440g (Typ.) |
| Used for | Industrial,Outdoor High Brightness,Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) + SPI, 50 pinsFPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
TM123XDKP11 LCD Panel Shipping and Package :
At our company, we take great care to ensure that all of our products arrive at their intended destination safely and securely. We understand that certain items require special handling, such as products with strong magnetic properties, including servo motors.
To guarantee the safe transportation of these particular products, we exclusively use EMS delivery. This service provides additional protection and security during transit, giving you peace of mind and a worry-free delivery experience. With EMS, you can rest assured that your order will arrive at your specified address in perfect condition.
We believe that every customer deserves the highest quality products and services, which is why we take extra precautions when it comes to items that require special handling. Our dedicated team is committed to ensuring that each and every order is handled with care and attention to detail, so you can trust us to deliver your products safely and on time.
In conclusion, our special handling policy for products with strong magnetic properties is just one example of our commitment to providing exceptional customer service. We are always looking for ways to improve our processes and procedures to ensure that our customers receive the best possible experience.
So you can be confident that when you choose our company, you are choosing a reliable and trustworthy partner who will always go the extra mile for you.
TM123XDKP11 LCD Panel FAQ :
Q: Can You declare my order of TM123XDKP11 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TM123XDKP11 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TM123XDKP11 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TM123XDKP11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
