LCD Screen Display Panel

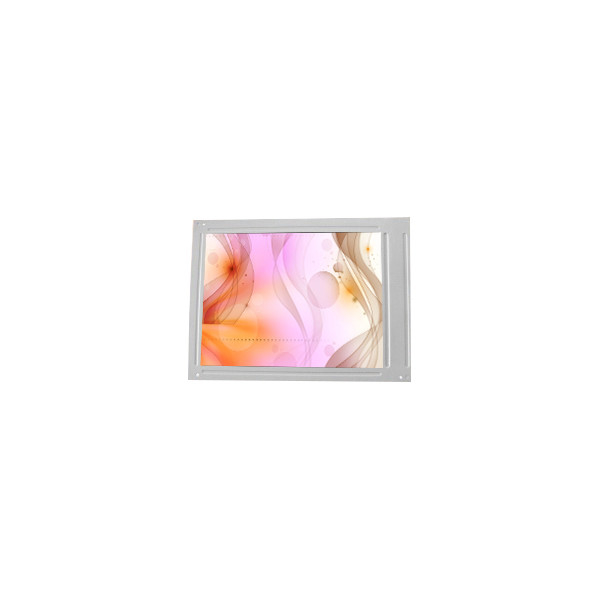

Original 5.5 inch 1080*1920 PJ055IC-01A LCD Screen Panel Module

All Category

Floor Standing Digital Signage

Original 5.5 inch 1080*1920 PJ055IC-01A LCD Screen Panel Module

Brand Name:	Chimei Innolux
Model Number:	PJ055IC-01A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PJ055IC-01A

Diagonal Size:

Panel Type:

LTPS TFT-LCD, CELL , Q-CUT (Full Cell)

Resolution:

1080(RGB)×1920, FHD 403PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×120.96(H) Mm

Treatment:

Without Polarizer

Application:

Mobile Phone

Light Source:

No B/L

Environment:

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 5.5 inch 1080*1920 PJ055IC-01A LCD Screen Panel Module

PJ055IC-01A LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	PJ055IC-01A
Diagonal Size	5.5"
Panel Type	LTPS TFT-LCD, CELL , Q-CUT (Full Cell)
Resolution	1080(RGB)×1920, FHD 403PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×120.96(H) mm
Bezel Opening	-
Outline Dim.	70.04(H)×127.61(V) ×0.3(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Plate Thickness	0.15+0.15 mm
Transmittance	4.12% (Typ.)(with Polarizer)
Support Color	16.7M
Light Source	No B/L
Weight	TBD
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest NT35565, NT35596, OTM1902, R93311
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

PJ055IC-01A LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

PJ055IC-01A LCD Panel Shipping and Package :

Original 5.5 inch 1080*1920 PJ055IC-01A LCD Screen Panel Module 0

PJ055IC-01A LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

PJ055IC-01A LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

PJ055IC-01A LCD Panel FAQ :

Q: How to make payment of PJ055IC-01A ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of PJ055IC-01A ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of PJ055IC-01A to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of PJ055IC-01A via credit card ?

A: Yes!you can use your credit card through your Paypal account.
