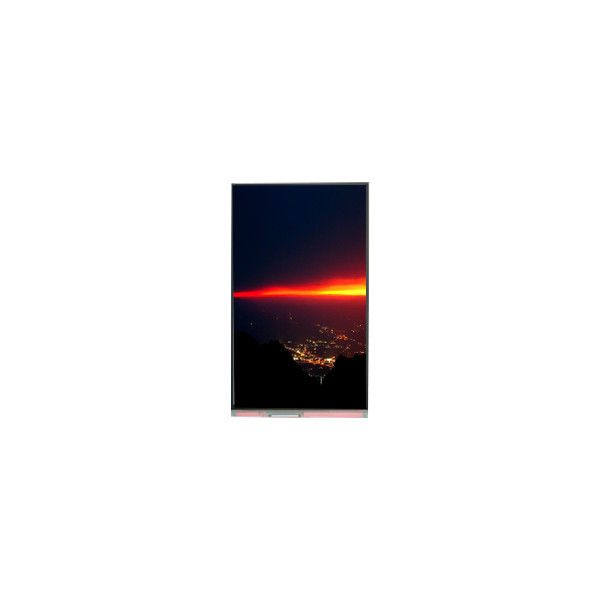

N070LGE-L41 1024*600 7.0 inch LVDS 40 pins LCD Screen Display

Brand Name:	Innolux
Model Number:	N070LGE-L41
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N070LGE-L41

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Color Depth:

262K/16.7M

Application:

Portable Navigation、Digital Photo Frame、Portable DVD Player、MID UMPC

Signal Type:

LVDS (1 Ch, 6/8-bit), FPC40 Pins

Max. Ratings:

Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

N070LGE-L41 1024*600 7.0 inch LVDS 40 pins LCD Screen Display

N070LGE-L41 LCD Panel Product details :

Brand	Innolux
Model P/N	N070LGE-L41
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	-
Outline (mm)	165.75×105.39×3.7 (H×V×D)
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M
Backlight	3S8PWLED, 15K hours, No Driver
Mass	112/122g (Typ./Max.)
Used for	Portable Navigation,Digital Photo Frame,Portable DVD Player,MID UMPC
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), FPC40 pins
Voltage Supply	3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

N070LGE-L41 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

N070LGE-L41 LCD Panel Shipping and Package :

N070LGE-L41 1024*600 7.0 inch LVDS 40 pins LCD Screen Display 0

N070LGE-L41 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

N070LGE-L41 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

N070LGE-L41 LCD Panel FAQ :

Q: How to order lcd panel N070LGE-L41 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will my order 7.0 inch lcd panel N070LGE-L41 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 7.0 inch lcd panel N070LGE-L41 before shipping?

A: Don't Worry , Our N070LGE-L41 was tested ok before shipping

Q: What happen if N070LGE-L41 I received can't work ?

A: Our lcd N070LGE-L41 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
