LCD Screen Display Panel

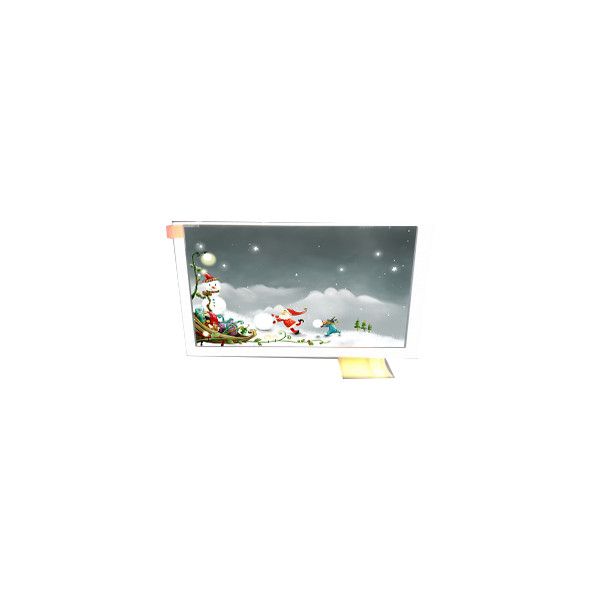

TM062RDS01 6.2 inch 800*480 60Hz LCD Screen Display

All Category

Floor Standing Digital Signage

TM062RDS01 6.2 inch 800*480 60Hz LCD Screen Display

Brand Name:	TIANMA
Model Number:	TM062RDS01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM062RDS01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 150PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

137.4(W)×77.28(H) Mm

Luminance:

400 Cd/m² (Typ.)

Application:

Automotive Display

Backlight:

3S8PWLED, No Driver

Color Depth:

262K/16.7M 50%NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

TM062RDS01 6.2 inch 800*480 60Hz LCD Screen Display

TM062RDS01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM062RDS01
Diagonal Size	6.2"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 150PPI
Pixel Format	RGB Vertical Stripe
Active Area	137.4(W)×77.28(H) mm
Bezel Opening	138.4(W)×78.28(H) mm
Outline Size	155.2(W)×88.2(H)×5.2(D) mm
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	75/75/60/70 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 50%NTSC
Backlight	3S8PWLED, No Driver
Mass	118g
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6/8-bit), 60 pinsFPC
Voltage Supply	3.3/10.5/20.0/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

TM062RDS01 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

TM062RDS01 LCD Panel Shipping and Package :

TM062RDS01 6.2 inch 800*480 60Hz LCD Screen Display 0

TM062RDS01 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

TM062RDS01 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

TM062RDS01 LCD Panel FAQ :

Q: Can You declare my order of TM062RDS01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of TM062RDS01 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods TM062RDS01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of TM062RDS01 ?

A: We accept T/T , Paypal , western union .
