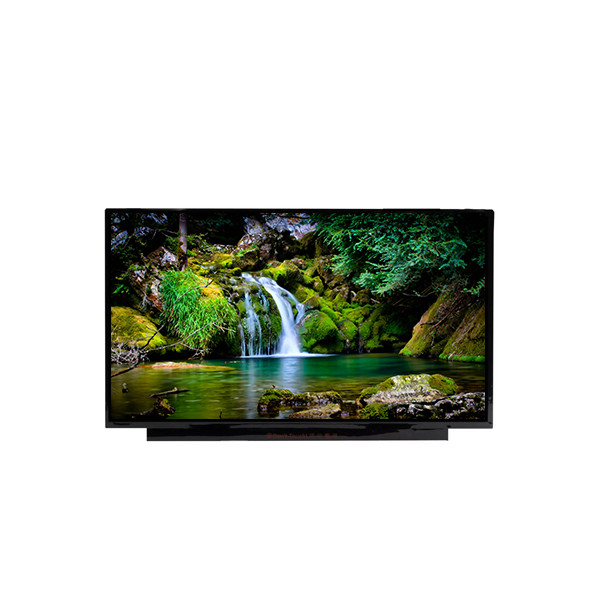

Original 1366*768 NV116WHM-N11 11.6 inch TFT LCD Screen

Brand Name:	BOE
Model Number:	NV116WHM-N11
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NV116WHM-N11

Diagonal Size:

11.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 135PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

256.125(W)×144(H) Mm

Brightness:

220 Cd/m² (Typ.)

Application:

Laptop

Signal Interface:

EDP (1 Lane), EDP1.2 , HBR1 (2.7G/lane) , 30 PinsConnector

Environment:

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 1366*768 NV116WHM-N11 11.6 inch TFT LCD Screen

NV116WHM-N11 LCD Panel Product details :

Brand	BOE
Model P/N	NV116WHM-N11
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline Size	278(W)×168(H)×3(D) mm
Surface	Hard coating (7H)
Brightness	220 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	12 (Typ.)(Tr+Td)
Display Colors	262K 45%NTSC
Lamp Type	8S3PWLED, 15K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Application	Laptop
Signal Interface	eDP (1 Lane), eDP1.2 , HBR1 (2.7G/lane) , 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

NV116WHM-N11 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

NV116WHM-N11 LCD Panel Shipping and Package :

Original 1366*768 NV116WHM-N11 11.6 inch TFT LCD Screen 0

NV116WHM-N11 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

NV116WHM-N11 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

NV116WHM-N11 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of NV116WHM-N11 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of NV116WHM-N11 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of NV116WHM-N11 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of NV116WHM-N11 ?

A: Of course!sample order is welcome !
