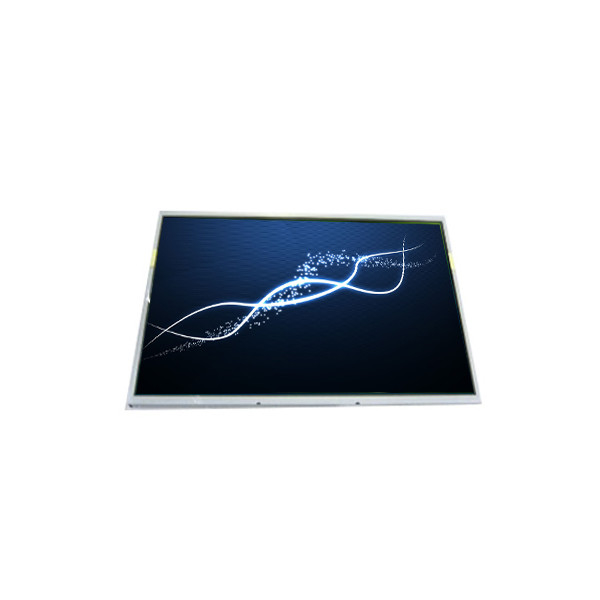

23.0 inch LM230WF5-TJG1 1920*1080 60Hz LCD Screen Monitor

Brand Name:	LG Display
Model Number:	LM230WF5-TJG1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230WF5-TJG1

Diagonal Size:

23.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 95PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

509.184(W)×286.416(H) Mm

Light Source:

No B/L, W/O Driver

Application:

Desktop Monitor

Operating Mode:

TN, Normally White, Transmissive

Plate Thickness:

0.50+0.50 Mm

Supply Ability:

100000 Unit/Units per Month

Product Description

23.0 inch LM230WF5-TJG1 1920*1080 60Hz LCD Screen Monitor

LM230WF5-TJG1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF5-TJG1
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	-
Outline Dim.	526.184(H)×301.116(V)×1.35(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.82% (Typ.)(with Polarizer)
Support Color	16.7M 72%NTSC
Light Source	No B/L, W/O Driver
Weight	485g (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 4 source chips
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LM230WF5-TJG1 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

LM230WF5-TJG1 LCD Panel Shipping and Package :

23.0 inch LM230WF5-TJG1 1920*1080 60Hz LCD Screen Monitor 0

LM230WF5-TJG1 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

LM230WF5-TJG1 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

LM230WF5-TJG1 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LM230WF5-TJG1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LM230WF5-TJG1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of LM230WF5-TJG1 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
