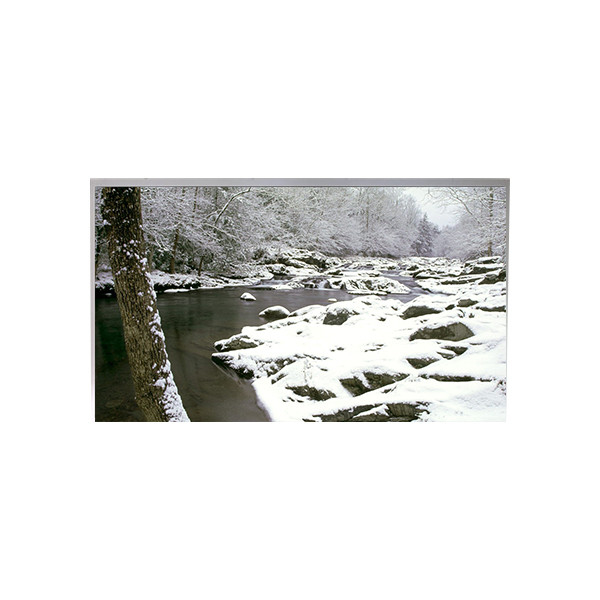

TM057KVHG01-00 5.7 inch 320*240 LCD Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM057KVHG01-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM057KVHG01-00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Touch Screen: | PCAP, I²C | Application: | Industrial |
| Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Product Description
TM057KVHG01-00 5.7 inch 320*240 LCD Screen for Industrial
TM057KVHG01-00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM057KVHG01-00 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 116.6(W)×87.8(H) mm |
| Outline Dim. | 144(W)×104.6(H) ×14.45(D) mm |
| Treatment | Hard coating (6H) |
| Luminance | 340 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | 5S3P WLED , 50K hours , Without Driver |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Interface Type | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
