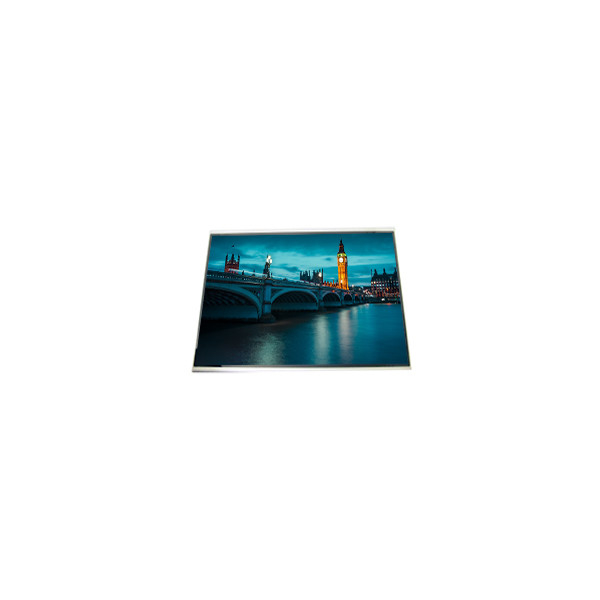

6.0 inch HSD060BHW1-D00 720*1280 IPS LCD Screen with MIPI Interface

Brand Name:	HannStar
Model Number:	HSD060BHW1-D00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD060BHW1-D00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 247PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

73.98(W)×131.52(H) Mm

View Direction:

Symmetry

Application:

Mobile Phone

Support Color:

16.7M 70% NTSC

Treatment:

Without Polarizer

Supply Ability:

100000 Unit/Units per Month

Product Description

6.0 inch HSD060BHW1-D00 720*1280 IPS LCD Screen with MIPI Interface

HSD060BHW1-D00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD060BHW1-D00
Diagonal Size	6.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 247PPI
Pixel Format	RGB Vertical Stripe
Active Area	73.98(W)×131.52(H) mm
Bezel Opening	-
Outline Dim.	76.58(W)×139.02(H)×0.4(D) mm
Luminance	0 cd/m²
View Direction	Symmetry
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Plate Thickness	0.20+0.20 mm
Support Color	16.7M 70% NTSC
Weight	-
Frame Rate	-
Treatment	Without Polarizer
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	16/19 (Typ.)(Tr/Td)
Operating Mode	IPS Pro, Normally Black, Transmissive
Transmittance	9.85% (Typ.)(without Polarizer)
Light Source	No B/L
Designed For	Mobile Phone
Touch Panel	Without
D-IC Detail	COG Suggest HX8394-A01, HX8394-B, NT35520, NT35521, OTM1283A, OTM1288A
Interface Type	MIPI (2 data lanes)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C

HSD060BHW1-D00 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

HSD060BHW1-D00 LCD Panel Shipping and Package :

6.0 inch HSD060BHW1-D00 720*1280 IPS LCD Screen with MIPI Interface 0

HSD060BHW1-D00 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

HSD060BHW1-D00 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

HSD060BHW1-D00 LCD Panel FAQ :

Q: How can I trace my order of HSD060BHW1-D00 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of HSD060BHW1-D00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of HSD060BHW1-D00 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of HSD060BHW1-D00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
