Brand Name: | HannStar |
Model Number: | HSD140PUW1-A00-0299 |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

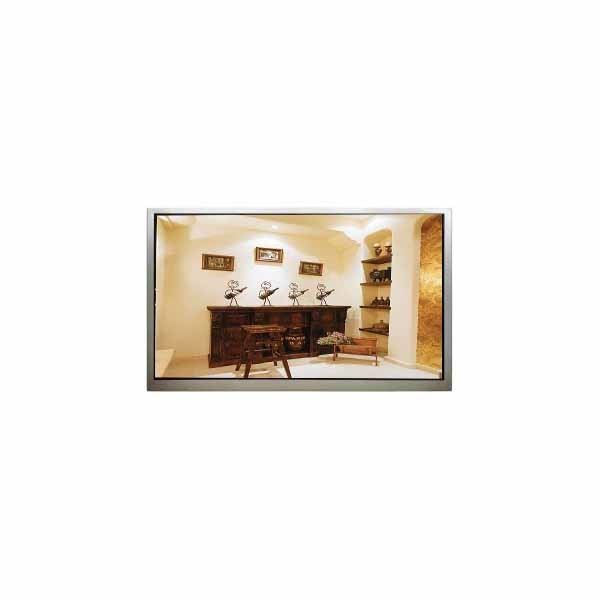

14.0 inch HSD140PUW1-A00-0299 1080p Laptop LCD Screen
HSD140PUW1-A00-0299 LCD Panel Product details :
Brand | HannStar |
Model P/N | HSD140PUW1-A00-0299 |
Diagonal Size | 14.0" |
Panel Type | a-Si TFT-LCD, CELL, FOB |
Resolution | 1920(RGB)×1080, FHD 157PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 309.312(W)×173.988(H) mm |
Bezel Opening | - |
Outline Size | 314.212(W)×183.938(H)×1.07(D) mm |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 0 cd/m² |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Response | 30 (Max.)(Tr+Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Glass Thickness | - |
Transmissivity | 5.27% (Typ.)(with Polarizer) |
Color Depth | 262K 45%NTSC |
Backlight | No B/L |
Outline Shape | - |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , 30 pinsConnector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
HSD140PUW1-A00-0299 LCD Panel Shipping and Package :
HSD140PUW1-A00-0299 LCD Panel FAQ :
Q: Can you tested the HSD140PUW1-A00-0299 before shipping ?
A: Of course , our lcd panel HSD140PUW1-A00-0299 was Strictly tested before shipping.
Q: How to order HSD140PUW1-A00-0299 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel HSD140PUW1-A00-0299 received can't work ?
A:HSD140PUW1-A00-0299 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
