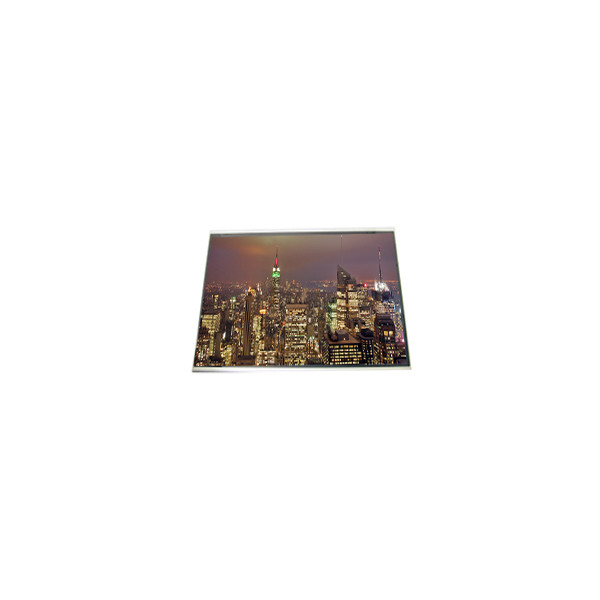

5.8 inch HSD058FHW1-C00 720*1512 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD058FHW1-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD058FHW1-C00 | Diagonal Size: | 5.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 720(RGB)×1512 286PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 63.936(W)×134.266(H) Mm |
| Designed For: | Mobile Phone | Backlight: | No B/L |
| Glass Thickness: | 0.25+0.25 Mm | Transmissivity: | 10.9% (Typ.)(without Polarizer) |
Product Description
5.8 inch HSD058FHW1-C00 720*1512 LCD Screen Display Panel
HSD058FHW1-C00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD058FHW1-C00 |
| Diagonal Size | 5.8" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 720(RGB)×1512 286PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 63.936(W)×134.266(H) mm |
| Bezel Opening | - |
| Outline (mm) | 65.936×140.156×0.5 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Glass Thickness | 0.25+0.25 mm |
| Transmissivity | 10.9% (Typ.)(without Polarizer) |
| Color Depth | 16.7M |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG HX8394F, JD9365D, ILI9881A, OTM1290A |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
HSD058FHW1-C00 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
HSD058FHW1-C00 LCD Panel Shipping and Package :
HSD058FHW1-C00 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
HSD058FHW1-C00 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
HSD058FHW1-C00 LCD Panel FAQ :
Q: Do you accept sample orders of HSD058FHW1-C00 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of HSD058FHW1-C00 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of HSD058FHW1-C00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Want to Know more details about this product
