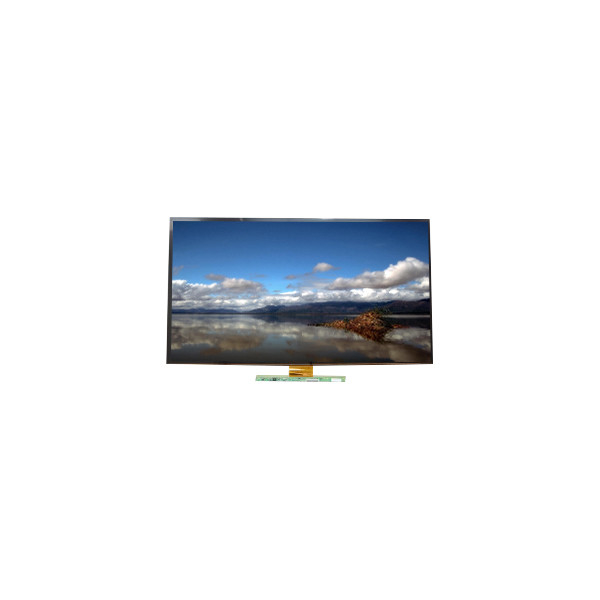

1920*1080 LSM238HL02-M01 23.8 inch LCD Screen Panel

Brand Name:	Samsung
Model Number:	LSM238HL02-M01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LSM238HL02-M01

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Designed For:

Desktop Monitor

Refresh Rate:

Good View At:

Symmetry

Work Mode:

PLS, Normally Black, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

1920*1080 LSM238HL02-M01 23.8 inch LCD Screen Panel

LSM238HL02-M01 LCD Panel Product details :

Brand	Samsung
Model P/N	LSM238HL02-M01
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Size	534.7(W)×307.08(H)(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	PLS, Normally Black, Transmissive
Glass Thickness	-
Transmissivity	4.45% (Typ.)(with Polarizer)
Color Depth	16.7M
Backlight	No B/L
Mass	400g (Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-in COF 4 source chips
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LSM238HL02-M01 LCD Panel guarantee:

Customers also need to consider some details when purchasing an extended warranty program. Firstly, it is necessary to ensure that the product itself is of high quality and reliability, in order to reduce the possibility of malfunctions. Secondly, before purchasing an extended warranty plan, customers should have a detailed understanding of the plan's content and terms to ensure that they can meet their needs, and have a clear understanding of the warranty period, coverage, compensation amount, etc. However, our product warranty is within 120 days
In short, expanding the warranty program can provide customers with longer periods of protection and support, making them more confident when using electronic products. But before purchasing this service, customers must carefully consider their needs and budget, and understand all the contents and terms of the plan.

LSM238HL02-M01 LCD Panel Shipping and Package :

1920*1080 LSM238HL02-M01 23.8 inch LCD Screen Panel 0

LSM238HL02-M01 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

LSM238HL02-M01 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

LSM238HL02-M01 LCD Panel FAQ :

Q: Can I pay my order of LSM238HL02-M01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of LSM238HL02-M01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Do you accept sample orders of LSM238HL02-M01 ?

A: Of course!sample order is welcome !
