NEW 9.0 inch HSD090LFW1-B00 1024*600 LCD Screen

Brand Name:	HannStar
Model Number:	HSD090LFW1-B00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD090LFW1-B00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 132PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

196.608(W)×114.15(H) Mm

Designed For:

Automotive Display

Refresh Rate:

Signal Type:

LVDS (1 Ch, 6/8-bit), 40 PinsFPC

Voltage Supply:

3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL)

Supply Ability:

100000 Unit/Units per Month

Product Description

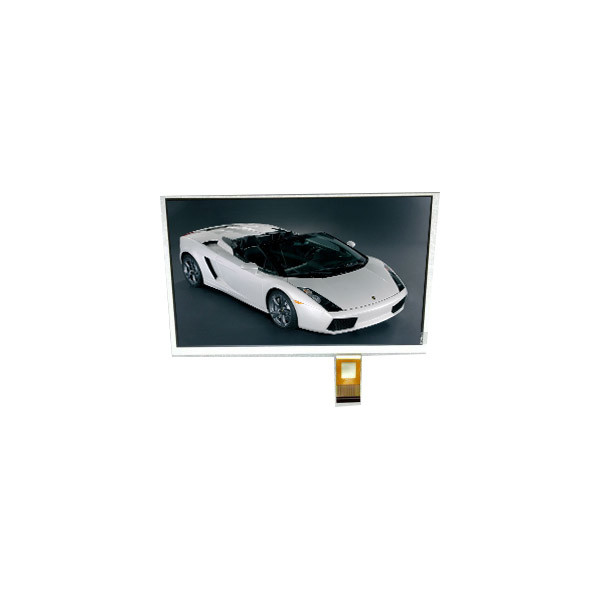

NEW 9.0 inch HSD090LFW1-B00 1024*600 LCD Screen

HSD090LFW1-B00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD090LFW1-B00
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 132PPI
Pixel Format	RGB Vertical Stripe
Active Area	196.608(W)×114.15(H) mm
Bezel Opening	200.01(W)×117.55(H) mm
Outline(mm)	211.1 × 126.5× 6 (H×V×D)
Treatment	Glare (Haze 0%)
Luminance	450 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	17/18 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	IPS Pro, Normally Black, Transmissive
Color Depth	262K/16.2M 50%NTSC
Backlight	WLED, 150K hours, No Driver
Mass	230g (Typ.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), 40 pinsFPC
Voltage Supply	3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²)

HSD090LFW1-B00 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

HSD090LFW1-B00 LCD Panel Shipping and Package :

NEW 9.0 inch HSD090LFW1-B00 1024*600 LCD Screen 0

HSD090LFW1-B00 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

HSD090LFW1-B00 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

HSD090LFW1-B00 LCD Panel FAQ :

Q: Can You declare my order of HSD090LFW1-B00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of HSD090LFW1-B00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of HSD090LFW1-B00 ?

A: Of course!If you make a large order, we will give you a discount.
