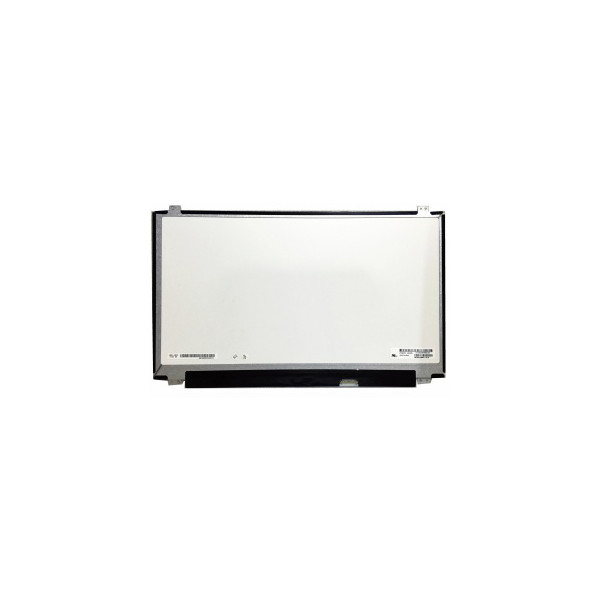

1920*1080 LP156WF6-SPM5 15.6 inch Laptop LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LP156WF6-SPM5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP156WF6-SPM5 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.16(W)×193.59(H) Mm |
| Designed For: | Laptop | Frame Rate: | 60Hz |
| Interface Type: | EDP (2 Lanes)Connector | Power Supply: | 3.3V (Typ.) |
Product Description
1920*1080 LP156WF6-SPM5 15.6 inch Laptop LCD Panel
LP156WF6-SPM5 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP156WF6-SPM5 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Luminance | - |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | AH-IPS, Normally Black, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | WLED, 15K hours, With LED Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes)Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LP156WF6-SPM5 LCD Panel Shipping and Package :
we need to choose reputable merchants for purchasing. This can be achieved through various methods, such as studying the evaluation of the merchant on an e-commerce platform, investigating the merchant's background, and so on. Choosing a reputable merchant not only ensures that the products we receive are the latest and of reliable quality, but also provides excellent after-sales service.
Secondly, we need to understand the specifications, prices, payment methods, delivery methods, and after-sales service of the product.
This can be obtained through product descriptions on web pages, shopping carts, online customer service, and other means. If you have any other questions or need to customize the product, you can choose the online message board or contact the merchant's customer service hotline. When contacting merchants, we need to clearly express our needs in order to receive better service.
we need to pay attention to protecting personal information and payment security. When making online payments, we need to choose a reliable payment method and keep payment records for future reference. At the same time, we need to properly safeguard our personal information to prevent it from being leaked to criminals or merchants who may use it for certain scams.
LP156WF6-SPM5 LCD Panel FAQ :
Q: Can you test the lcd panel LP156WF6-SPM5 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order LP156WF6-SPM5 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order LP156WF6-SPM5 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd LP156WF6-SPM5 ?
A: 90 days .
