Hot Sell 6.0 inch LPM060A549B 1080*2160 LCD Screen Panel

All Category

Floor Standing Digital Signage

Hot Sell 6.0 inch LPM060A549B 1080*2160 LCD Screen Panel

Brand Name:	JDI
Model Number:	LPM060A549B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LPM060A549B

Diagonal Size:

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1080(RGB)×2160 403PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×136.08(H) Mm

Designed For:

Mobile Phone

Touch Panel:

PCAP, I²C

Good View At:

Symmetry

Color Depth:

16.7M 83%NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

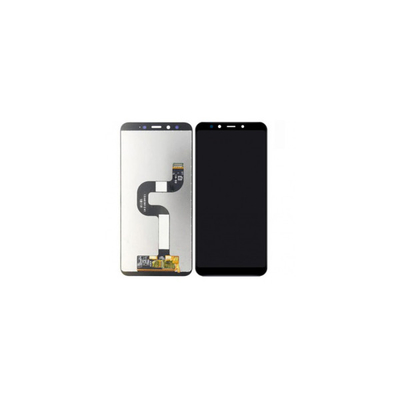

Hot Sell 6.0 inch LPM060A549B 1080*2160 LCD Screen Panel

LPM060A549B LCD Panel Product details :

Brand	JDI
Model P/N	LPM060A549B
Diagonal Size	6.0"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1080(RGB)×2160 403PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×136.08(H) mm
Bezel Opening	-
Outline Size	72.6(W)×155.8(H)(D) mm
Treatment	Anti Fingerprint
Luminance	480 cd/m² (Typ.)
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	-
Color Depth	16.7M 83%NTSC
Backlight	8S2PWLED, No Driver
Mass	50.6g
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	PCAP, I²C
Signal Type	MIPI (4 data lanes), 40 pinsConnector
Voltage Supply	1.8/5.5/-5.5V (Typ.)(IOICC/VSP/VSN)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

LPM060A549B LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

LPM060A549B LCD Panel Shipping and Package :

Hot Sell 6.0 inch LPM060A549B 1080*2160 LCD Screen Panel 0

LPM060A549B LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

LPM060A549B LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

LPM060A549B LCD Panel FAQ :

Q: How can I trace my order of LPM060A549B ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods LPM060A549B ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of LPM060A549B ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of LPM060A549B via credit card ?

A: Yes!you can use your credit card through your Paypal account.
