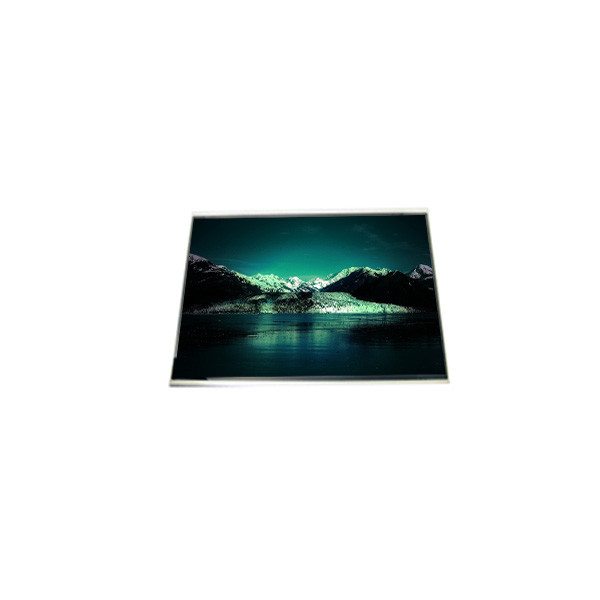

LPP060A549A 6.0 inch 60Hz MIPI Interface LCD Screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPP060A549A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPP060A549A | Diagonal Size: | 6.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 1080(RGB)×2160 403PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×136.08(H) Mm |
| Designed For: | Mobile Phone | Frame Rate: | 60Hz |
| Operating Mode: | IPS, Normally Black, Transmissive | Plate Thickness: | 0.15+0.15 Mm |
Product Description
LPP060A549A 6.0 inch 60Hz MIPI Interface LCD Screen Monitor
LPP060A549A LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPP060A549A |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×2160 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×136.08(H) mm |
| Bezel Opening | - |
| Outline Dim. | 69.24(H)×140.98(V)×0.3(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Tf) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 4.36% (Typ.) |
| Support Color | 16.7M 100%sRGB |
| Light Source | No B/L |
| Weight | 7.60g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch |
| D-IC Detail | COG Suggest JD36672H-DP/3UA |
| Interface Type | MIPI (4 data lanes) |
| Power Supply | 1.8/5.5/-5.5V (Typ.)(IOICC/VSP/VSN) |
| Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
LPP060A549A LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
LPP060A549A LCD Panel Shipping and Package :
LPP060A549A LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
LPP060A549A LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
LPP060A549A LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of LPP060A549A ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of LPP060A549A ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of LPP060A549A ?
A: Of course!sample order is welcome !
Want to Know more details about this product
