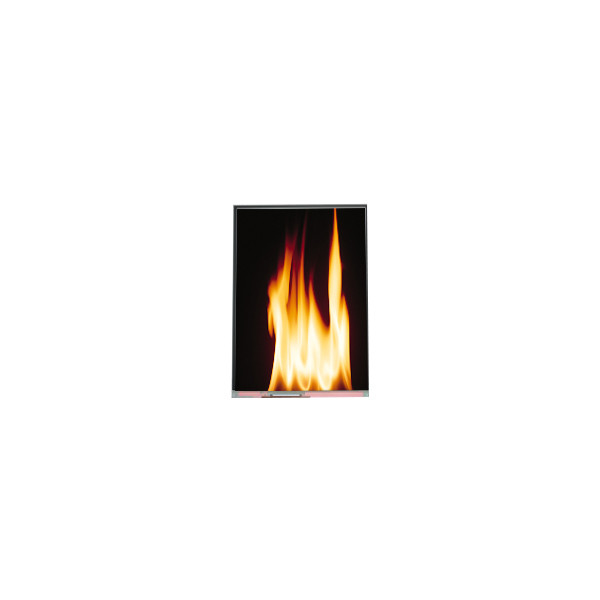

LX052A1BB03 5.2 inch 1080*1920 LCD Screen FOR Phone

Brand Name:	Sharp
Model Number:	LX052A1BB03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LX052A1BB03

Diagonal Size:

Panel Type:

CG-Silicon, CELL, Q-CUT (Full Cell)

Resolution:

1080(RGB)×1920, FHD 427PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

64.152(W)×114.048(H) Mm

Designed For:

Mobile Phone

Environment:

Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C

Display Colors:

16.7M 74%NTSC

Driver IC:

COGBuilt-in R63315

Supply Ability:

100000 Unit/Units per Month

Product Description

LX052A1BB03 5.2 inch 1080*1920 LCD Screen FOR Phone

LX052A1BB03 LCD Panel Product details :

Brand	Sharp
Model P/N	LX052A1BB03
Diagonal Size	5.2"
Panel Type	CG-Silicon, CELL, Q-CUT (Full Cell)
Resolution	1080(RGB)×1920, FHD 427PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.152(W)×114.048(H) mm
Bezel Opening	-
Outline Size	65.76(W)×120.54(H)×0.3(D) mm
Surface	Without Polarizer
Brightness	0 cd/m²
Contrast Ratio	900:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	New Mode2, Normally Black, Transmissive
Best View on	Symmetry
Response Time	-
Glass Depth	0.15+0.15 mm
Transmissivity	2.95% (Typ.)(with Polarizer)
Display Colors	16.7M 74%NTSC
Lamp Type	No B/L
Frequency	-
Touch Screen	Without
Driver IC	COGBuilt-in R63315
Panel Weight	-
Application	Mobile Phone
Environment	Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C
CELL LCD Panel LX052A1BB03 5.2 inch FHD LCD Display Monitor

LX052A1BB03 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

LX052A1BB03 LCD Panel Shipping and Package :

LX052A1BB03 5.2 inch 1080*1920 LCD Screen FOR Phone 0

LX052A1BB03 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

LX052A1BB03 LCD Panel Expand warranty :

Extended warranty refers to the option for consumers to extend the warranty period within the original warranty period to ensure the quality and functional stability of their purchased products for a longer period of time. This is a very useful service because with the development of technology and the acceleration of product updates, consumers need longer protection to avoid quality issues affecting normal use. Expanding warranty provides consumers with more choices and protection, enhancing their purchasing confidence and loyalty.

By expanding the warranty, consumers can obtain a longer warranty period to ensure the quality and functional stability of the product. This can allow consumers to use the product with peace of mind, avoiding additional costs and the time and effort required to replace the product due to quality issues. At the same time, expanding warranty can also provide consumers with more choices, allowing them to choose whether to purchase warranty services based on their own needs and budget, thereby better managing their consumption.

The emergence of extended warranty also provides merchants with more competitive advantages. By providing excellent warranty services, businesses can attract more consumers, enhance their brand influence and market competitiveness. Meanwhile, in a fiercely competitive market environment, businesses can establish more stable consumer relationships by expanding warranty and other services, thereby achieving more sustainable business development.

In short, expanding warranty is a very useful service and opportunity, which can provide consumers with better protection and choices, and provide merchants with more competitive advantages and business opportunities. We should actively support and participate in expanding warranty services, and jointly promote the win-win development of consumers and businesses.

LX052A1BB03 LCD Panel FAQ :

Q: Do you accept sample orders of LX052A1BB03 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods LX052A1BB03 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can I pay my order of LX052A1BB03 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90days warranty .
