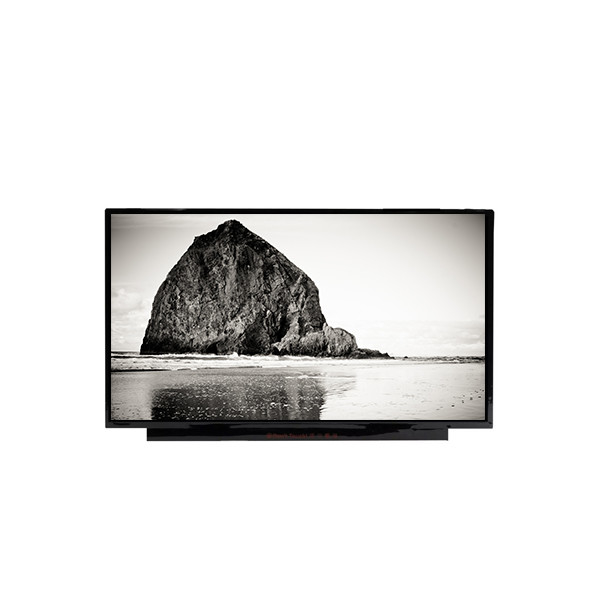

NEW 11.6 inch NV116WHM-A23 1366*768 60Hz 262K LCD Screen

Brand Name:	BOE
Model Number:	NV116WHM-A23
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NV116WHM-A23

Diagonal Size:

11.6"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1366(RGB)×768, WXGA 135PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

256.125(W)×144(H) Mm

Designed For:

Laptop

Touch Panel:

PCAP, Optical Bonding, I²C

Interface Type:

EDP (2 Lanes), EDP1.240 Pins Connector

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

NEW 11.6 inch NV116WHM-A23 1366*768 60Hz 262K LCD Screen

NV116WHM-A23 LCD Panel Product details :

Brand	BOE
Model P/N	NV116WHM-A23
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline Dim.	287.7(W)×185.6(H)×4.05(D) mm
Luminance	200 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Support Color	262K 50% NTSC
Form Style	Slim (PCBA Flat, T≤3.2mm)
Frame Rate	60Hz
Treatment	Anti-Scatter, Hard coating (7H)
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	30 (Typ.)(Tr+Td)
Operating Mode	-
Light Source	WLED [6S4P] , 15K hours , With LED Driver
Designed For	Laptop
Touch Panel	PCAP, Optical Bonding, I²C
Interface Type	eDP (2 Lanes), eDP1.240 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

NV116WHM-A23 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

NV116WHM-A23 LCD Panel Shipping and Package :

NEW 11.6 inch NV116WHM-A23 1366*768 60Hz 262K LCD Screen 0

NV116WHM-A23 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

NV116WHM-A23 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

NV116WHM-A23 LCD Panel FAQ :

Q: Can you test the lcd panel NV116WHM-A23 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order NV116WHM-A23 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order NV116WHM-A23 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd NV116WHM-A23 ?

A: 90 days .
