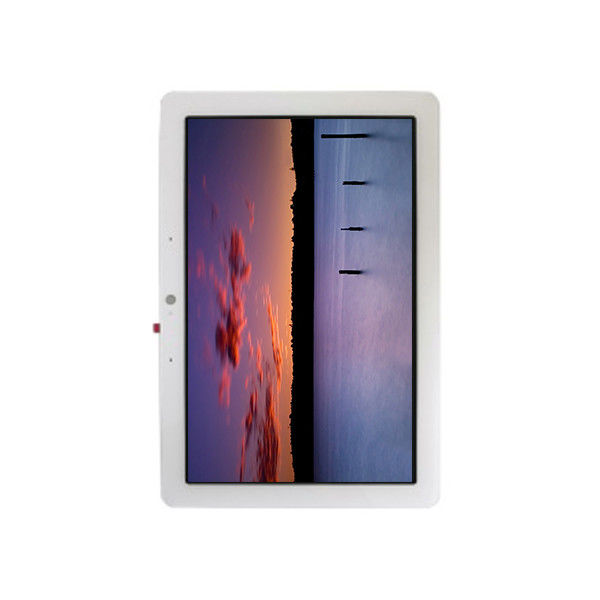

TV101WXM-AG0 10.1 inch 800*1280 LCD Screen FOR Pad Tablet

Brand Name:	BOE
Model Number:	TV101WXM-AG0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TV101WXM-AG0

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

800(RGB)×1280, WXGA 150PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

135.322(W)×216.463(H) Mm

Designed For:

Pad & Tablet

Touch Panel:

PCAP, I²C

Signal Interface:

MIPI (4 Data Lanes), 51 PinsConnector

Input Voltage:

3.3/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE)

Supply Ability:

100000 Unit/Units per Month

Product Description

TV101WXM-AG0 10.1 inch 800*1280 LCD Screen FOR Pad Tablet

TV101WXM-AG0 LCD Panel Product details :

Brand	BOE
Model P/N	TV101WXM-AG0
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	800(RGB)×1280, WXGA 150PPI
Pixel Format	RGB Vertical Stripe
Active Area	135.322(W)×216.463(H) mm
Bezel Opening	-
Outline Size	164(W)×245.2(H) mm
Surface	Anti Fingerprint, Hard coating (7H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Display Colors	16.7M 57%NTSC
Lamp Type	6S6PWLED, 15K hours, Without Driver
Frequency	60Hz
Touch Screen	PCAP, I²C
Panel Weight	300g (Max.)
Application	Pad & Tablet
Signal Interface	MIPI (4 data lanes), 51 pinsConnector
Input Voltage	3.3/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

TV101WXM-AG0 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TV101WXM-AG0 LCD Panel Shipping and Package :

TV101WXM-AG0 10.1 inch 800*1280 LCD Screen FOR Pad Tablet 0

TV101WXM-AG0 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TV101WXM-AG0 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TV101WXM-AG0 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of TV101WXM-AG0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of TV101WXM-AG0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of TV101WXM-AG0 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
