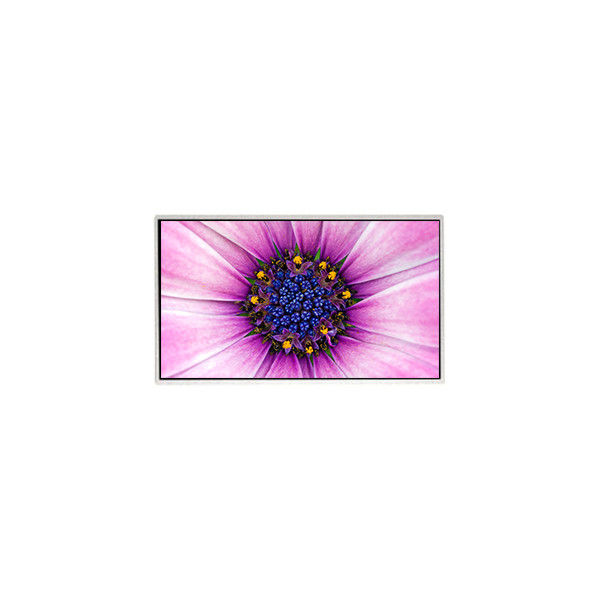

7.0 inch TT070WVM-NW1 800*480 LCD Screen for Home Appliance
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TT070WVM-NW1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TT070WVM-NW1 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 134PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.84(W)×85.632(H) Mm |
| Designed For: | Home Appliance | Frame Rate: | 60Hz |
| Interface Type: | Parallel RGB (1 Ch, 6/8-bit), 50 PinsFPC | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
Product Description
7.0 inch TT070WVM-NW1 800*480 LCD Screen for Home Appliance
TT070WVM-NW1 LCD Panel Product details :
| Brand | BOE |
| Model P/N | TT070WVM-NW1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.84(W)×85.632(H) mm |
| Bezel Opening | - |
| Outline Dim. | 164.9(W)×100(H) mm |
| Treatment | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 45%NTSC |
| Light Source | WLED [8S3P], W/O Driver |
| Weight | - |
| Designed For | Home Appliance |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6/8-bit), 50 pinsFPC |
| Power Supply | 3.3/10.3/18/-8.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
TT070WVM-NW1 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
TT070WVM-NW1 LCD Panel Shipping and Package :
TT070WVM-NW1 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
TT070WVM-NW1 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
TT070WVM-NW1 LCD Panel FAQ :
Q: Do you accept sample orders of TT070WVM-NW1 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of TT070WVM-NW1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods TT070WVM-NW1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of TT070WVM-NW1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
