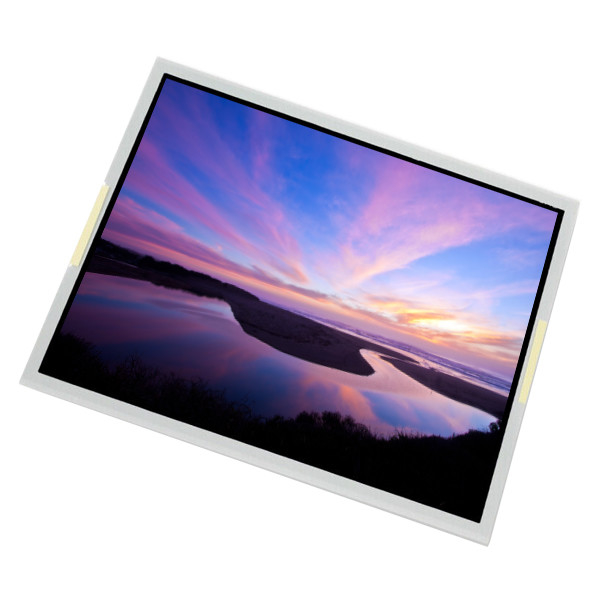

Hot Sell 15.0 inch NL10276AC30-42D 1024*768 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276AC30-42D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276AC30-42D | Diagonal Size: | 15.0inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Designed For: | Industrial | Refresh Rate: | 60Hz |
| Signal Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | Voltage Supply: | 3.3V (Typ.) |
Product Description
Hot Sell 15.0 inch NL10276AC30-42D 1024*768 LCD Screen Display
NL10276AC30-42D LCD Panel Product details :
| NEC LCD Screen NL10276AC30-42D | |
| Manufacturer | NEC |
| Model Name | NL10276AC30-42D |
| Screen Size | 15.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline (mm) | 326.5 × 253.5 × 12.1 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/5 (Typ.)(Tr/Td) |
| Best View on | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 60% NTSC |
| Backlight | WLED , 70K hours , With LED Driver |
| Mass | 1.05/1.10Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touch screen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 15.0inch Good screen LCD screen display PANEL NL10276AC30-42D | |
