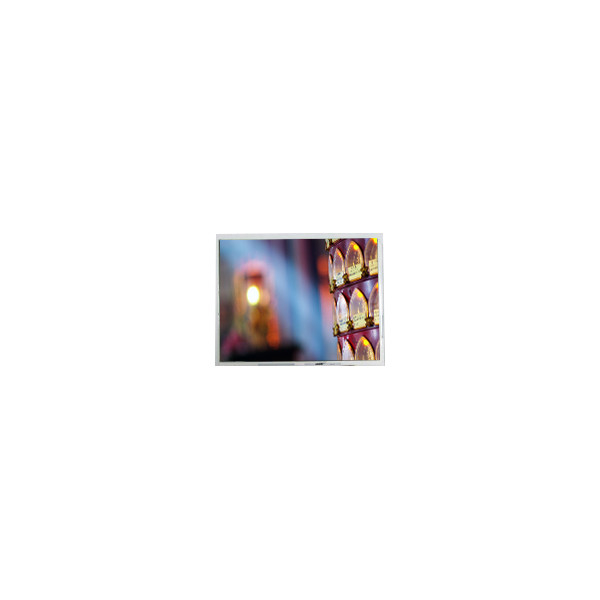

5.0 inch AM-320234A50TMCW-00H 320*234 430 cd/m2 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-320234A50TMCW-00H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-320234A50TMCW-00H | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×234 79PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 102.72(W)×74.53(H) Mm |
| Designed For: | Industrial | Touch Panel: | Without |
Product Description
5.0 inch AM-320234A50TMCW-00H 320*234 430 cd/m2 LCD Screen Panel
AM-320234A50TMCW-00H LCD Panel Product details :
| Brand | AMPIRE |
| Model P/N | AM-320234A50TMCW-00H |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×234 79PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 102.72(W)×74.53(H) mm |
| Bezel Opening | 106.9(W)×78.5(H) mm |
| Outline Dim. | 119.4(H)×91.4(V)×8(D) mm |
| Treatment | Antiglare |
| Luminance | 430 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 5/40 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/25/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | Full color |
| Light Source | CCFL, 50K hours, W/O Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | TFT Specific Analog RGB, 26 pinsFPC |
| Power Supply | 5/5/17/-15V (Typ.)(VCC/VDD/VGH/VGL) |
| Environment | Operating Temperature: -10 ~ 60 °C; Storage Temperature: -20 ~ 70 °C |
| 5.0 inch AM-320234A50TMCW-00H 320*234 430 cd/m2 LCD Screen Panel | |
AM-320234A50TMCW-00H LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
AM-320234A50TMCW-00H LCD Panel Shipping and Package :
AM-320234A50TMCW-00H LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
AM-320234A50TMCW-00H LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
AM-320234A50TMCW-00H LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd AM-320234A50TMCW-00H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order AM-320234A50TMCW-00H ship?
A: The order are shipped within 1-2 working days after received the payment.
