LCD Screen Display Panel

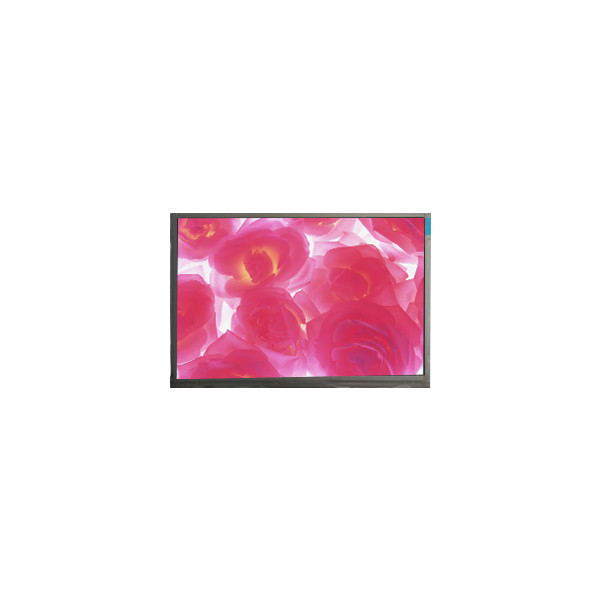

G070SWP1 R0 7.0 inch 800*480 LCD Screen Monitor

All Category

Floor Standing Digital Signage

G070SWP1 R0 7.0 inch 800*480 LCD Screen Monitor

Brand Name:	IVO
Model Number:	G070SWP1 R0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G070SWP1 R0

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×86.64(H) Mm

Designed For:

Digital Photo Frame、Portable DVD Player

Signal Type:

Parallel RGB (1 Ch, 8-bit)

Driver IC List:

Suggest COG NT39416Q + NT52001

Max. Ratings:

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

G070SWP1 R0 7.0 inch 800*480 LCD Screen Monitor

G070SWP1 R0 LCD Panel Product details :

Brand	IVO
Model P/N	G070SWP1 R0
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×86.64(H) mm
Bezel Opening	-
Outline (mm)	162.35×97.89×1.43 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	5.5% (Typ.)(with Polarizer)
Color Depth	16.7M 50%NTSC
Backlight	No B/L
Mass	72.0g (Typ.)
Used for	Digital Photo Frame,Portable DVD Player
Refresh Rate	-
Touchscreen	Without
Driver IC list	Suggest COG NT39416Q + NT52001
Signal Type	Parallel RGB (1 ch, 8-bit)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

G070SWP1 R0 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

G070SWP1 R0 LCD Panel Shipping and Package :

G070SWP1 R0 7.0 inch 800*480 LCD Screen Monitor 0

G070SWP1 R0 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

G070SWP1 R0 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

G070SWP1 R0 LCD Panel FAQ :

Q: How can I trace my order of G070SWP1 R0 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of G070SWP1 R0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of G070SWP1 R0 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of G070SWP1 R0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
