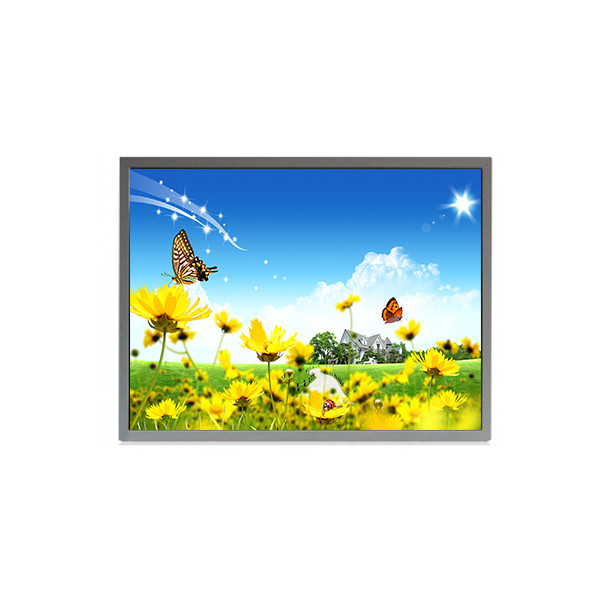

15.6 inch TMS156WX1-12TB 1366*768 LCD Screen FOR Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AVIC |
| Model Number: | TMS156WX1-12TB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TMS156WX1-12TB | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.232(W)×193.536(H) Mm |
| Designed For: | Desktop Monitor | Signal Type: | LVDS (1 Ch, 8-bit), 30 Pins Connector |
| Voltage Supply: | 5.0V (Typ.) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Product Description
15.6 inch TMS156WX1-12TB 1366*768 LCD Screen FOR Desktop Monitor
TMS156WX1-12TB LCD Panel Product details :
| Brand | AVIC |
| Model P/N | TMS156WX1-12TB |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 347.53(W)×196.84(H) mm |
| Outline(mm) | 363.8(W)×215.9(H)×14.8(D) |
| Luminance | 250 (Typ.)(cd/m²) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 16.7M 60% NTSC |
| Mass | TBD |
| Refresh Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 2/6 (Typ.)(Tr/Td) ms |
| Backlight | 10S4P WLED , 30K hours , No Driver |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
TMS156WX1-12TB LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
TMS156WX1-12TB LCD Panel Shipping and Package :
TMS156WX1-12TB LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
TMS156WX1-12TB LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
TMS156WX1-12TB LCD Panel FAQ :
Q: How to order lcd screen TMS156WX1-12TB ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of TMS156WX1-12TB ?
A: 90 days.
Q: What happen if the TMS156WX1-12TB I received can't work ?
A: Our lcd panel TMS156WX1-12TB was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my TMS156WX1-12TB lcd display when shipping?
A: Yes , please inform us the value you want .
