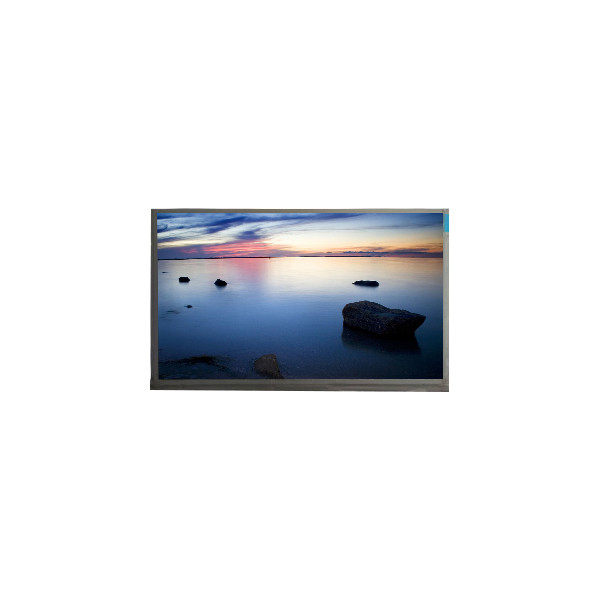

1024*600 EJ070NA-01J 7.0 inch LCD Screen for Netbook PC
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | EJ070NA-01J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EJ070NA-01J | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Designed For: | Netbook PC ，Portable Navigation ，Digital Photo Frame ，Portable DVD Player | Frame Rate: | 60Hz |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 40 Pins FPC | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
Product Description
1024*600 EJ070NA-01J 7.0 inch LCD Screen for Netbook PC
EJ070NA-01J LCD Panel Product details :
| Brand | Chimei Innolux |
| Model P/N | EJ070NA-01J |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | 156.14(W)×92.60(H) mm |
| Outline Dim. | 165.75(W)×105.39(H) ×3.7(D) mm |
| Treatment | Glare (Haze 0%), Hard coating |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 70% NTSC |
| Light Source | 3S8P WLED , 20K hours , Without Driver |
| Shape Style | - |
| Designed For | Netbook PC ,Portable Navigation ,Digital Photo Frame ,Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Input Voltage | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
EJ070NA-01J LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
EJ070NA-01J LCD Panel Shipping and Package :
EJ070NA-01J LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
EJ070NA-01J LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
EJ070NA-01J LCD Panel FAQ :
Q: How long will I receive my goods EJ070NA-01J ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of EJ070NA-01J ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of EJ070NA-01J ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
