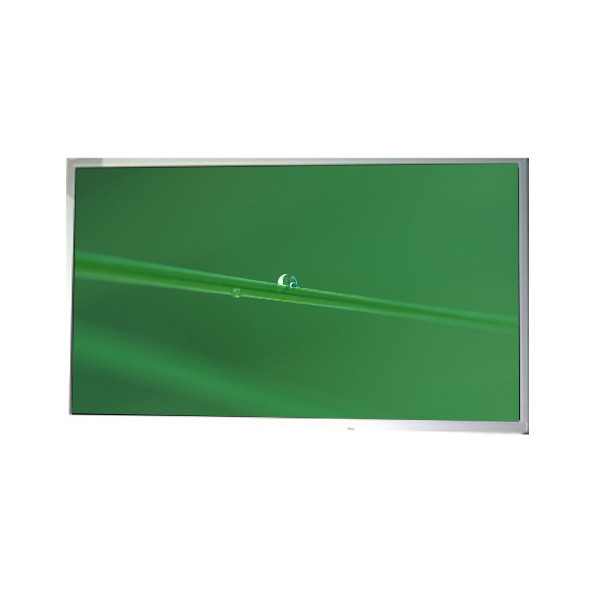

LM215WF4-TJAA 21.5 inch 1920*1080 LCD Screen Display Panel

Brand Name:	LG Display
Model Number:	LM215WF4-TJAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM215WF4-TJAA

Diagonal Size:

21.5"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

476.64(W)×268.11(H) Mm

Designed For:

Desktop Monitor

Backlight:

No B/L, No Driver

Signal Type:

Mini LVDS, 50 Pins Connector

Max. Ratings:

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

LM215WF4-TJAA 21.5 inch 1920*1080 LCD Screen Display Panel

LM215WF4-TJAA LCD Panel Product details :

Brand	LG Display
Model P/N	LM215WF4-TJAA
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.64(W)×268.11(H) mm
Bezel Opening	-
Outline(mm)	488.14(W)×280.7(H)×1.69(D)
Luminance	0 (cd/m²)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Good View at	6 o'clock
Glass Thickness	0.63+0.63 mm
Color Depth	16.7M 74% NTSC
Mass	515/540g (Typ./Max.)
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	600 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	1.3/3.7 (Typ.)(Tr/Td) ms
Transmissivity	-
Backlight	No B/L, No Driver
Used for	Desktop Monitor
Touchscreen	Without
Driver IC list	Built-inCOF6 source chips
Signal Type	Mini LVDS, 50 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LM215WF4-TJAA LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

LM215WF4-TJAA LCD Panel Shipping and Package :

LM215WF4-TJAA 21.5 inch 1920*1080 LCD Screen Display Panel 0

LM215WF4-TJAA LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

LM215WF4-TJAA LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

LM215WF4-TJAA LCD Panel FAQ :

Q: How to order lcd panel LM215WF4-TJAA ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will my order 21.5 inch lcd panel LM215WF4-TJAA ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 21.5 inch lcd panel LM215WF4-TJAA before shipping?

A: Don't Worry , Our LM215WF4-TJAA was tested ok before shipping

Q: What happen if LM215WF4-TJAA I received can't work ?

A: Our lcd LM215WF4-TJAA was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
