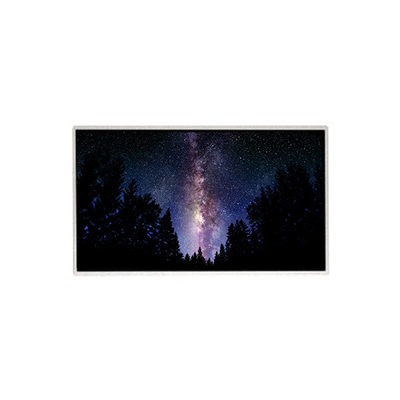

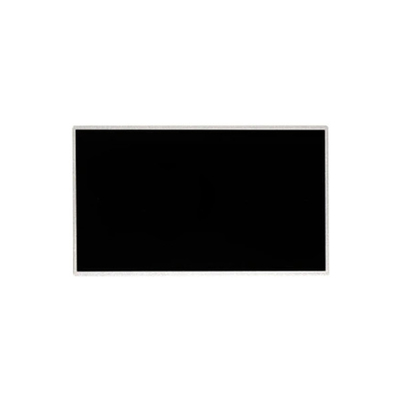

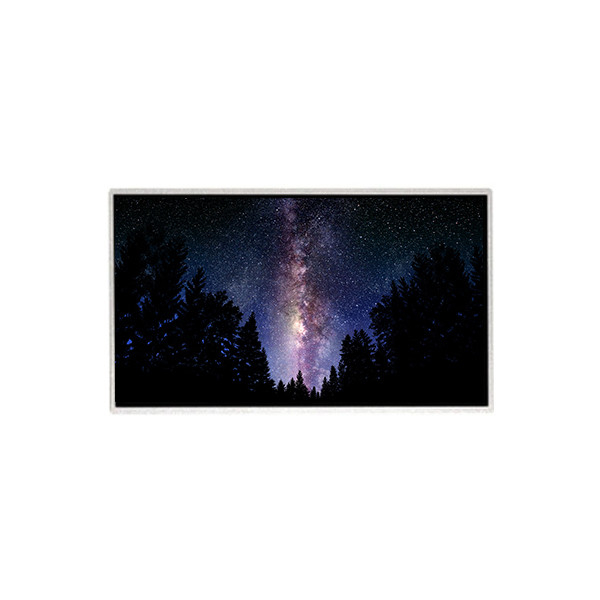

HM185WX3-200 18.5 inch 1366*768 TFT LCD Screen Display
  • name
  • name

HM185WX3-200 18.5 inch 1366*768 TFT LCD Screen Display

Brand Name: BOE
Model Number: HM185WX3-200
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Model Name:
HM185WX3-200
Diagonal Size:
18.5"
Panel Type:
A-Si TFT-LCD, CELL, FOB
Resolution:
1366(RGB)×768, WXGA 84PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
409.8(W)×230.4(H) Mm
Used For:
Desktop Monitor
Driver IC:
COFBuilt-in 6 Source + 3 Gate Chips
Signal Interface:
LVDS (1 Ch, 8-bit), 30 Pins Connector
Environment:
Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
Supply Ability:
100000 Unit/Units per Month
Product Description

HM185WX3-200 18.5 inch 1366*768 TFT LCD Screen Display



HM185WX3-200 LCD Panel Product details :



Brand BOE
Model P/N HM185WX3-200
Diagonal Size 18.5"
Panel Type a-Si TFT-LCD, CELL, FOB
Resolution 1366(RGB)×768, WXGA 84PPI
Pixel Format RGB Vertical Stripe
Active Area 409.8(W)×230.4(H) mm
Outline Size 421.4(W)×242.25(H)×1.83(D) mm
Surface Antiglare (Haze 25%), Hard coating (3H)
Brightness 0 cd/m²
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 45/45/25/40 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 1.5/3.5 (Typ.)(Tr/Td)
Glass Depth 0.70+0.70 mm
Display Colors 16.7M 72%NTSC
Lamp Type No B/L
Frequency 60Hz
Touch Screen Without
Driver IC COFBuilt-in 6 source + 3 gate chips
Panel Weight 500g (Max.)
Application Desktop Monitor
Signal Interface LVDS (1 ch, 8-bit), 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C


HM185WX3-200 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.


HM185WX3-200 LCD Panel Shipping and Package :

HM185WX3-200 18.5 inch 1366*768 TFT LCD Screen Display 0



HM185WX3-200 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

HM185WX3-200 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.


HM185WX3-200 LCD Panel FAQ :



Q: Can you give me a discount if I need a large quantity of HM185WX3-200 ?

A: Of course!If you make a large order, we will give you a discount.



Q: How can I trace my order of HM185WX3-200 ?

A: we will give you tracking number then you can trace your order from website.



Q: How to make payment of HM185WX3-200 ?

A: We accept T/T , Paypal , western union .



Q: Do you accept sample orders of HM185WX3-200 ?

A: Of course!sample order is welcome !
