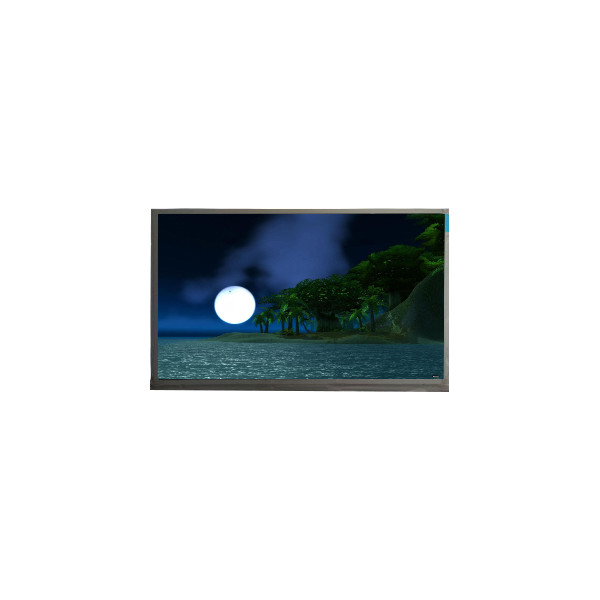

Name: 13.3 inch N133BGE-P41 1366*768 LCD Screen for Laptop
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: N133BGE-P41
Availability: InStock

Brand Name:	Chimei Innolux
Model Number:	N133BGE-P41
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N133BGE-P41

Diagonal Size:

13.3"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1366(RGB)×768, WXGA 118PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

293.42(W)×164.97(H) Mm

Used For:

Laptop

Frame Rate:

60Hz

Input Voltage:

3.3V (Typ.)

Environment:

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

13.3 inch N133BGE-P41 1366*768 LCD Screen for Laptop

N133BGE-P41 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	N133BGE-P41
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1366(RGB)×768, WXGA 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	293.42(W)×164.97(H) mm
Bezel Opening	-
Outline Dim.	301.97(W)×174.82(H) ×1.27(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	8/8 (Typ.)(Tr/Td)
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Glass Depth	0.50+0.50 mm
Transmissivity	6.5% (Typ.)(with Polarizer)
Support Color	262K 46% NTSC
Light Source	No B/L , With LED Driver
Shape Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Built-in 3 source + 3 gate chips
Signal Interface	LVDS (1 ch, 6-bit) , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

N133BGE-P41 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

N133BGE-P41 LCD Panel Shipping and Package :

13.3 inch N133BGE-P41 1366*768 LCD Screen for Laptop 0

N133BGE-P41 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

N133BGE-P41 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

N133BGE-P41 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods N133BGE-P41 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity N133BGE-P41 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods N133BGE-P41 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment N133BGE-P41 ?

A: We accept T/T , Paypal , western union .
